triaxial accelerometer / piezoelectric / IEPE / miniature
3093M4

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    miniature, EMI

  • Acceleration range:

    981 m/s² (3,219 ft/s²)

  • Frequency:

    Min.: 0.5 Hz

    Max.: 5,000 Hz

Description

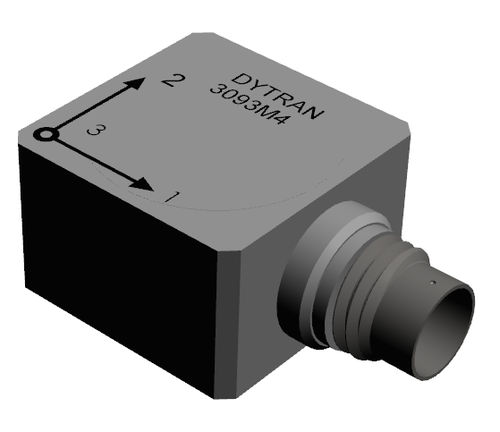

The 3093M4 from Dytran Instruments Inc. is a triaxial accelerometer. The unit is a miniature IEPE accelerometer designed with a 50 mV/g sensitivity, vertical height of 0.37 inches or 9.3 millimeters, and an overall weight of 9.5 grams.

The accelerometer features ceramic shear sensing components, and is built with a lightweight titanium casing. The construction of the model integrates an industry-standard 4-pin radial connector, and adhesive mounting abilities.

The unit is applicable for modal and structural analysis, product response testing, and general-purpose triaxial vibration measurements.
