triaxial accelerometer / shear / IEPE / rugged
3233A5T

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    shear, IEPE

  • Other characteristics:

    rugged

  • Acceleration range:

    4,903 m/s² (16,086 ft/s²)

  • Frequency:

    Min.: 0.4 Hz

    Max.: 6,000 Hz

Description

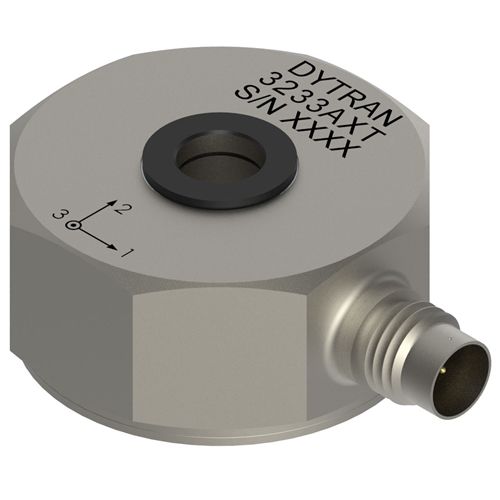

Model 3233A5T, Triaxial Accelerometer with TEDS

OVERVIEW

The Dytran model 3233A5T is an IEPE triaxial accelerometer with a sensitivity of 10 mV/g and incorporates Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities.

The sensor features ceramic shear sensing elements, packaged in a rugged titanium housing, with an industry standard radial 4-pin connector and thru hole mounting capabilities. This ring style mounting configuration allows the sensor to be turned 360° prior to securing for ease of installation. Units are hermetically sealed for reliable operation in high humidity and dirty environments, as well as electrically case isolated to avoid EMI/ground loop interference.
