triaxial accelerometer / piezoelectric / IEPE / rugged
3033B2

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    rugged, miniature

  • Acceleration range:

    4,903 m/s² (16,086 ft/s²)

  • Frequency:

    Min.: 1 Hz

    Max.: 8,000 Hz

Description

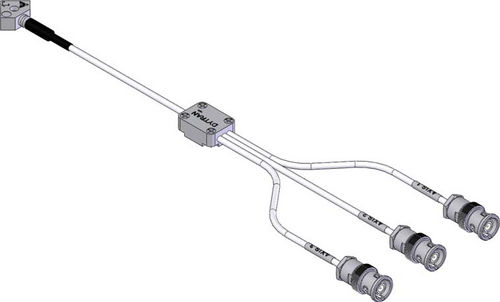

Dytran's 3033B2 model is a triaxial IEPE accelerometer integrated with 4 to 40 mounting screws. The tool features 7.9 mm of height and a total weight of 11 grams.

It is equipped with quartz shear sensing elements in a rugged stainless steel housing for improved frequency response. This accelerometer offers a 3-foot integral cable, and thru hole mounting capabilities.

In addition, it is suitable for use in different applications, such as environmental Stress Screening, product response testing and general purpose triaxial vibration measurements.
