triaxial accelerometer / piezoelectric / IEPE / miniature
3023A2H

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    miniature, high-temperature

  • Acceleration range:

    4,903 m/s² (16,086 ft/s²)

  • Frequency:

    Max.: 10,000 Hz

    Min.: 1.5 Hz

Description

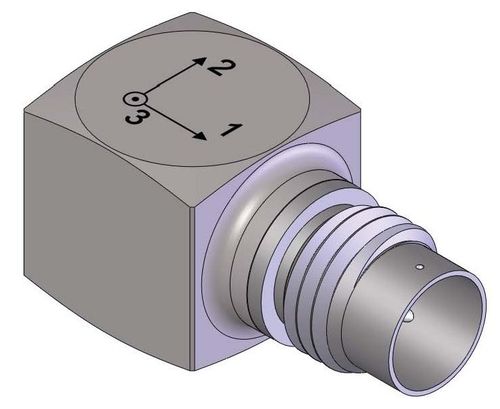

The Dytran 3023A2 triaxial accelerometer from Dytran is ideally used for applications that require simple and cost-efficient solutions for IEPE applications. This unit is designed with a 1.5 Hz frequency response and a frequency range that stretches up to 10000 Hz for the third axis, and 5000 Hz for the first and second. This product is hermetically sealed. It is fitted with a 4-pin 1/4-28 axial connector, and a 10-32 tapered hole. Moreover, it is engineered with a sensitivity of 10 mV/g.
