triaxial accelerometer / piezoelectric / IEPE / rugged
3233A

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    piezoelectric, IEPE

  • Other characteristics:

    rugged, EMI, high-sensitivity

  • Acceleration range:

    49 m/s² (161 ft/s²)

  • Frequency:

    Max.: 6,000 Hz

    Min.: 0.4 Hz

Description

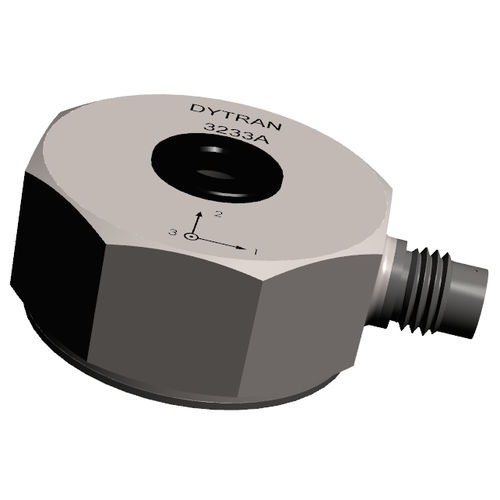

The 3233A model from Dytran is an IEPE triaxial accelerometer equipped with high sensitivity of 1,000 mV/g. The device provides ceramic shear sensing elements, and is packed in a lightweight rugged titanium housing. Units are closed for reliable operation in high humidity and dirty atmospheres. This accelerometer has a 360°C cable orientation for easy installation. In addition, 3233A can be used in different areas of application, such as civil structural monitoring, low level vibration measurements, seismic monitoring and general purpose triaxial vibration measurements.
