Wastewater pump RIGHT series
electricsubmersiblecentrifugal

wastewater pump
wastewater pump
wastewater pump
Add to favorites
Compare this product

Go to the EBARA PUMPS EUROPE website for more information

Characteristics

Fluid
for wastewater
Operation
electric
Priming
submersible
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial
Applications
handling, drain, lifting
Material
stainless steel
Voltage
400 V, 230 V
Other characteristics
large, mobile
Flow

Max.: 18 m³/h
(635.664 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Head

Max.: 9.5 m
(31'02" )

Min.: 0 m
(0'00" )

Power

0.55 kW, 0.75 kW
(0.75 hp, 1.02 hp)

Fluid temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Width

186 mm
(7.32 in)

Height

405 mm, 430 mm
(15.94 in, 16.93 in)

Weight

10 kg, 11.5 kg
(22.05 lb, 25.35 lb)

Description

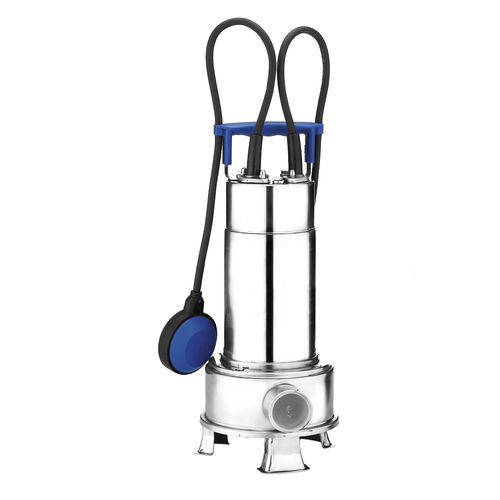

Submersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations. Suitable for domestic applications and large industrial wastewater lifting installations. Submersible pump entirely in AISI 304 stainless steel and open vortex impeller, which can be used in fixed and mobile installations. The RIGHT electric pump is also available with a float switch that allows for wide use. For further technical information see the Databook • Handling of soiled liquids containing solid and/or filamentary substances in suspension • Emptying of seepage water • Handling of dirty wastewater (sanitary) • Emptying of cesspits and discharge to sewers
