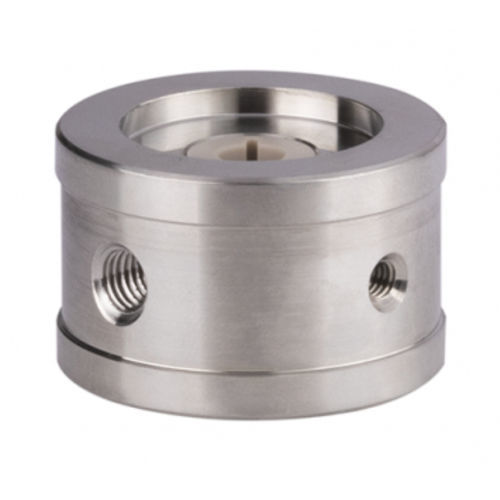

UV-Vis flow cell PNSL series

PEEK

For detectors TOY18/20DAD I, U; BABY18DAD and TOY18/20DAD V. The new series of preparative stainless steel PFC cells is intended for ECOM HPLC systems with a UV-VIS detector and with a continuous flow of mobile phase. PFC cells are offered with different optical paths, pressure resistance, maximum flow rate of mobile phase, and with the option of choosing the appropriate fitting and outer diameter (OD) of tubes and capillaries. The type called BASIC is intended for ECOM OEM detectors TOY18/20DAD I, U; BABY18DAD, and TOY18/20DAD V. The PFC flow cells bring a whole range of important construction improvements. In the ECOM product portfolio, they replace the previous PLCC series. Advantages of the new PFC cells´ design • Increased pressure resistance– up to 6 MPa (870 psi, 60 bar) • Extended cell life – thanks to the new cell window design • Increased temperature resistance range – now from -50 °C up to 100 °C • Increased stability of the optical path – even under high-pressure conditions • Extended optical path length choice to 9 options – 0.05; 0.1; 0.3; 0.5; 1; 2; 3; 4 and 5 mm • New more intuitive product numbering system – according to the optical path length • More easy exchangeable cells – according to preferred sensitivity/application
