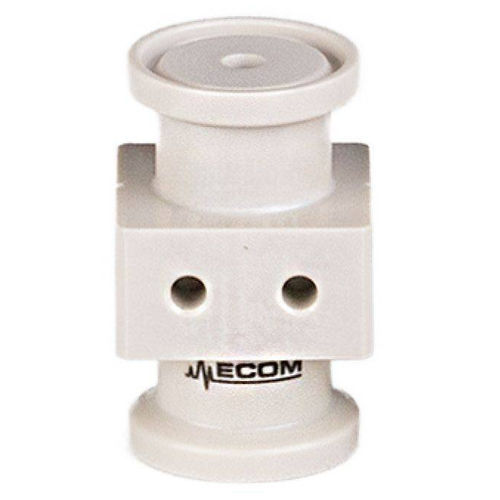

Liquid flow cell TC series

in-linePEEKfor chromatography

Single-use cells TriClamp Series with a favorable price. They can be easily replaced by the customer after each use, or after a few uses, in the holder. They can be easily connected to the piping system. Single-use cells TriClamp are used for analyzing and monitoring the absorbance of liquids passing through the cell, where UV light is led from the detector and back using SMA 905 connector and optical–fiber cables. This is designed as a cost-effective solution for applications where there is a need to use a new cell for each separation to avoid cross-contamination and where it is impossible to wash and re-use the cells. The Flow-cells themselves (without holder) are disposable and can be sterilized before use eg. by Gamma radiation, which is a commonly used technique in the pharmaceutical industrial/pilot-scale chromatography. These single-use cells with a favorable price can be easily replaced by the customer after each use, or after a few uses in the holder. Pressure and temperature resistance: The cell is designed to withstand a maximum operating pressure of 8 MPa (1160 PSI). Also, it can withstand high operating temperatures of up to +260 °C (500 °F), making it affordable for single-use applications. Optical path length: The cell is equipped with an inner insert made of PEEK material. This allows customers to choose the optical path length in advance. Different optical path lengths are available: from 0.05 mm to 15 mm.
