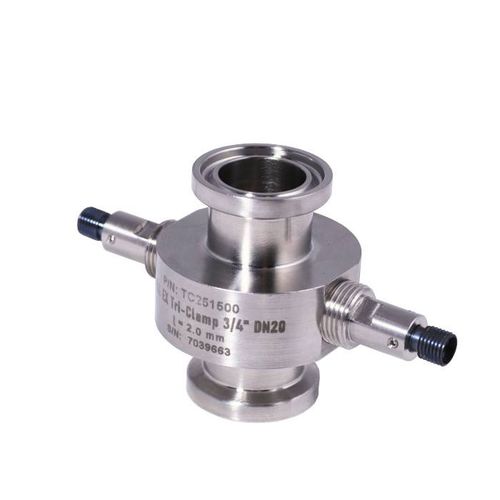

Liquid flow cell TC25150X

PEEK

Stainless Steel TriClamp Cells are used in industrial/pilot-scale process chromatography. They can be easily connected to the piping system. TriClamp Cells are used for analyzing and monitoring the absorbance of liquids passing through the cell, where UV light is led from the detector and back using SMA 905 connector and optical–fiber cables. Pressure and temperature resistance: The cell is designed to withstand a maximum operating pressure of 30 MPa (4351 PSI) or 2 MPa (290 PSI), according to the cell size. Also, it can withstand high operating temperatures up to +160° C (320° F). Optical path length: Different optical path lengths are available: from 0.05 mm to 2, 4, 5, and 10 mm, according to cell size. Quality of the surface: The internal flow-through hole of the cell is characterized by its high-quality processed surface. Its internal surface quality value is less than Ra 0.4 µm. On request, the cell can be electro-polished and passivated. Wetted Materials: are a 316L stainless steel body, a sapphire window, and an inner insert made of PEEK MT or Quartz window with FFKM and FEP sealing. On request cell body can be made from Hastelloy. Features and Benefits • Resistant to high pressures 30 MPa (4351 PSI) or 2 MPa (290 PSI) and high temperatures (up to +160 °C (320 °F).) • Elimination of dead volume • Good rinsing without cross-contamination of the sample • Compliant with USP Class VI requirements • Wide range of optical path length options • Compatible with ECOM external TOY detectors
