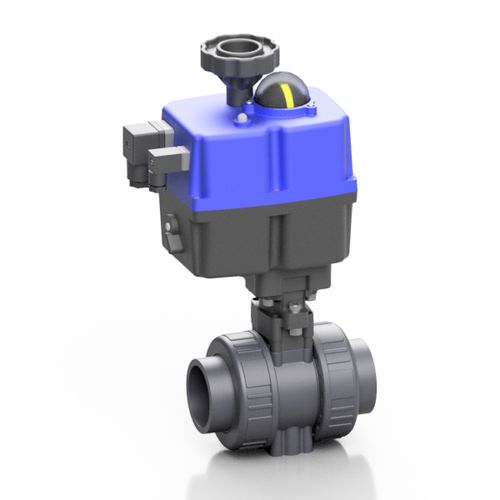

Ball valve EBK1electrically-actuatedcontrolblanketing
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electrically-actuated
- Function
- control, blanketing
- Media
- for water, for liquid food products and beverages, for chemical products
- Body
- with flange, threaded, weld, welded, PTFE, EPDM, PVC-U, plastic, HDPE
- Applications
- for the chemical industry, for marine applications, for heavy-duty applications
- Number of channels
- 2-channel
- Fluid specification
- for aggressive media
- Other characteristics
- ISO, standard, with actuator, drive, waterproof, toroidal, for aggressive media
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Flow rate
Min.: 190 l/min
(50.19 us gal/min)Max.: 10,000 l/min
(2,641.72 us gal/min)
Description
ball valve, ideal for heavy duty applications, chemical applications and water treatment, can be actuated with standard electric actuators using the dedicated kit. The mounting flange is drilled according to standard ISO 5211.
Technical features:
• Solvent welded sockets (ISO, BS, ASTM, JIS), threaded sockets (BSP or NPT), HDPE sockets or flanged
• Valve body designed to be actuated
• Floating full bore ball locked in place on both sides.
• Fully round ball smoothed by special turning machines.
• Machined stem seat.
• PTFE ball seat.
• EDPM or FKM O-rings.
• Potable water approval.
• Marine Application approval.
• CE approval.
• The valves are manufactured with a PVC-U fit for conctact with potable water in accordance with regulation force in Italy, France, Germany, Holland, U.K. and Scandinavian countries.
