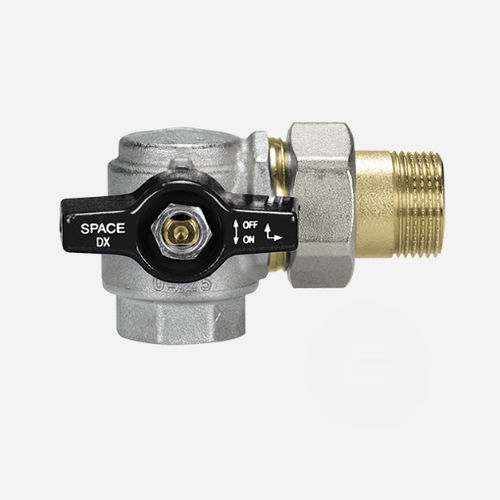

Ball valve SPACE series

manualfor waterthreaded

TECHNICAL FEATURES: Temperature limits: for fluids from –15°C to +90°C for gas from -15°C to + 60°C (FF) Pressure limits: for fluids 10 bar (20°C) for gas: MOP5 (FF) SPECIFIC FEATURES: • The SPACE ball valve incorporates an “L” manifold and a ball valve in a single item. Frontal patented T-handle: ease of handling. Angle valve: quick, low cost assembly. Compact system: allows manifold sets in closed proximity and the use of compact built in boxes. Bore: full. Stem: anti blow out. Seats: high resistance PTFE. Upper seal: 3 seals 1 PTFE ring - high pressure 2 O-Ring - low pressure. Application fields: The SPACE ball valve is recommended in heating installations and manifold sets. Sizes: 1/2” - 3/4” – 1”- 1” 1/4. Threaded end connections: • Standard female according to UNI ISO 228/1. • Nut and tail (metallic seat + O-ring). Operation devices: Red, blue, yellow and black aluminium T-handle. The direction of the flow can be detected by the marking on the position indicator. All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
