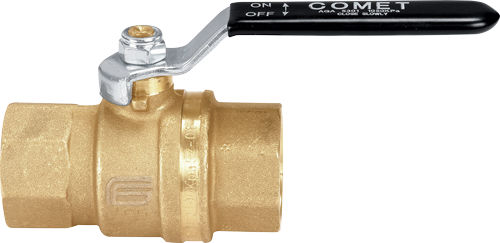

Ball valve COMET seriesleverfor waterthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for water
- Body
- threaded
- Other characteristics
- standard, DZR
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
25 bar
(362.6 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: -15 °C
(5 °F)
Description
TECHNICAL FEATURES:
Temperature limits: for fluids from –15°C to + 90°C
Pressure limits: for fluids 25 Bar
SPECIFIC FEATURES:
Bore: full.
Stem: anti blow out.
Seats: high resistance virgin PTFE.
Upper seal: 3 seals:
1 PTFE ring - high pressure
2 O-Ring - low pressure.
Application fields:
The COMET DZR ball valve is particularly suitable for those installations where high aggressive water causes decinzification in standard brass alloys and weakens the molecular structure of the material.
Threaded end connections:
• Standard female according to UNI ISO 7/1 (UNI EN 10226).
Operation devices:
Aluminium lever, aluminium T-handle, steel lever
Available colours: black
All the valves comply with the regulation 97/23/CE and are tested 100% on pneumatic seal with electronic control.
