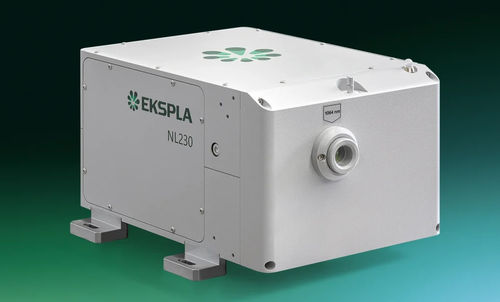

Nanosecond laser system NL230

LIDARindustrialTi:sapphire

The NL230 series diode-pumped short nanosecond lasers are designed to produce high-intensity, high-brightness pulses and are targeted for applications such as material ablation, Light Detection And Ranging (LIDAR), remote sensing, mass spectroscopy, OPO, Ti:Sapphire or dye laser pumping and many more. Diode pumping allows maintenance-free laser operation for an extended period of time – more than 3 years for an estimated eight working hours per day.

Features

• Customers recognized reliability
• Two years warranty
• Diode-pumped
• Rugged sealed laser cavity
• Up to 190 mJ at 1064 nm pulse energy
• Up to 100 Hz pulse repetition rate
• Short pulse duration in the 3–6 ns range
• Variable reflectivity output coupler for low-divergence beam
• Quiet operation: no more flashlamp firing sound
• Remote control via keypad and/or any controller running on any OS using REST API commands
• Temperature-stabilized second and third harmonic generators (optional)
• Electromechanical shutter (optional)
• Easy replaceable output window

Applications

• LIBS (Light Induced Breakdown Spectroscopy)
• Material ablation
• OPO pumping
• Remote Sensing
• LIDAR (Light Detection And Ranging)
• Mass Spectroscopy
• LIF (Light Induced Fluorescence)

Description
The NL230 series lasers are built with robust, sealed, and precisely machined monolithic aluminium blocks, ensuring reliable operation in harsh industrial environments, such as laser-induced breakdown spectroscopy (LIBS). Second and third harmonic options expand the range of applications, where high pulse energy and high pulse-to-pulse stability are required. For easy and seamless control and integration with other industrial equipment, the NL230 series laser is equipped with USB/RS232 interfaces and can be externally triggered with a jitter as low as < 0.5 ns StDev. NL230 series lasers are designed to work reliably 24/7 in an industrial environment.

Benefits

• Short duration 3–6 ns pulses ensure strong interaction with material, highly suitable for LIBS
• User selectable wavelength single axis output is superior for experiments requiring alternating wavelengths, such as material ablation and LIBS
• Rugged, monolithic design enables laser usage in harsh environments
• Diode pumped design provides quiet operation, eliminates the irritation of flash light
• Variety of interfaces (USB, RS232, LAN, WLAN) ensures easy control and integration with other equipment

Specifications

• Model: NL231-50 / NL231-100
• Pulse energy (not less than): at 1064 nm: 190 mJ (NL231-50), 150 mJ (NL231-100); at 532 nm: 110 mJ (NL231-50), 90 mJ (NL231-100); at 355 nm: 55 mJ (NL231-50), 40 mJ (NL231-100); at 266 nm: 3 mJ (NL231-50), 1.2 mJ (NL231-100)
• Pulse energy stability (StdDev): at 1064 nm: < 1.0 %; at 532 nm: < 2.5 %; at 355 nm: < 3.5 %; at 266 nm: < 5 %
• Pulse repetition rate: 50 Hz (NL231-50), 100 Hz (NL231-100)
• Power drift: < ±3 %
• Pulse duration: 3–6 ns
• Linewidth: < 1 cm⁻¹ at 1064 nm
• Beam profile: “Top Hat” in near field and close to Gaussian in far field
• Beam divergence: < 0.8 mrad
• Beam pointing stability (RMS): ≤ 60 μrad
• Polarization: linear, > 90 % at 1064 nm
• Typical beam diameter: 5 mm
• Optical pulse jitter (StDev): Internal/External triggering regime: < 0.5 ns
• Typical warm-up time: 10 min
• Laser head size (W × L × H): 251 × 290 × 167 ± 3 mm
• Power supply unit (W × L × H): Desktop case: 449 × 390 × 140 ± 3 mm; 19″ module: 483 × 390 × 140 ± 3 mm
• External chiller: inquire
• Umbilical length: 3 m
• Cooling: external chiller
• Ambient temperature: 18–30 °C
• Relative humidity: 20–80 % (non-condensing)
• Power requirements: 100–240 V AC, single phase, 50/60 Hz
• Power consumption: < 1.0 kW
• Cleanliness of the room: not worse than ISO Class 9
