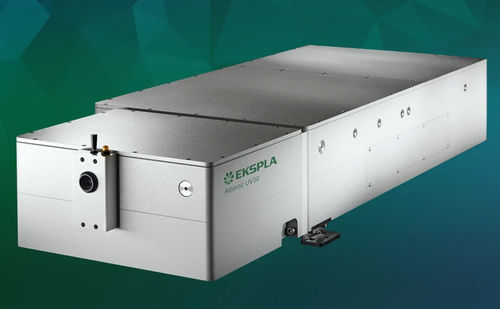

Picosecond laser system Atlantic

nanosecondsolid-stateinfrared

The Atlantic series are high-power industrial picosecond lasers designed for a wide range of material processing applications in R&D labs and industrial environments. These water-cooled lasers deliver high energy and power, making them suitable for demanding tasks such as LCD or OLED display cutting and drilling, laser induced forward transfer (LIFT), glass and sapphire processing, micromachining of ultra-hard materials, ablation of metals, cutting and drilling of polymers, silicon scribing, and solar cell scribing.

Features

• At 1064 nm: Up to 80 W output power, up to 200 μJ pulse energy
• At 532 nm (optional): Up to 40 W output power, up to 100 μJ pulse energy
• At 355 nm (optional): Up to 30 W output power, up to 75 μJ pulse energy
• Up to 1 MHz repetition rate
• Short pulse duration: 10 ps
• M² < 1.3
• Versatile laser control and synchronization capabilities
• Smart triggering for synchronous operation with polygon scanner and PSO
• Monolithic, sealed, and rugged design
• Low ownership cost
• Nanosecond pulse duration mode (optional)

Applications

• Drilling
• Cutting
• Patterning
• Structuring
• Ablation
• Dicing
• Micromachining
• LCD, OLED cutting
• Laser induced forward transfer
• Sapphire structuring and dicing
• Ceramics micromachining
• PCD drilling and tracing
• Silicon scribing
• PET, PP, PTFE, Silicone cutting and drilling

Description
Atlantic lasers offer superior beam quality, maximum available average power (80 W @ IR / 40 W @ VIS / 30 W @ UV), maximum available pulse energy (200 μJ @ IR / 100 μJ @ VIS / 75 μJ @ UV), and a maximum pulse repetition rate of up to 1 MHz. These features are beneficial for high processing quality and high throughput. Advanced electronics enable external gating (including PSO), synchronization, precise laser triggering, and instant signal amplitude control. The lasers are built for reliability and long-term stable operation in industrial environments, with optical components installed in a sealed, robust, monolithic aluminum block. The design ensures robust, low-maintenance operation, optimized layout, PC-controlled operation, a built-in self-diagnostic system, and advanced status reporting. For high-power UV laser applications, the UV optics are optimized for longevity and stable operation, resulting in a UV optics lifetime of 8,000 hours. A unique optional feature allows operation in both picosecond and nanosecond modes, providing a 2-in-1 solution for materials processing where both high accuracy and high throughput are required at low cost.

Characteristics / Technical Specifications

• Models: Atlantic 50, Atlantic 80
• Central wavelength: 1064 nm (fundamental), 532 nm (2H option), 355 nm (3H option)
• Laser pulse repetition rate: 300–1000 kHz (Atlantic 50), 400–1000 kHz (Atlantic 80)
• Maximal average output power: 50 W (Atlantic 50, 1064 nm), 80 W (Atlantic 80, 1064 nm); 25 W / 40 W at 532 nm; 18 W / 30 W at 355 nm
• Pulse energy at lowest PRR: up to 165 µJ / 200 µJ (1064 nm), 85 µJ / 100 µJ (532 nm), 60 µJ / 75 µJ (355 nm)
• Pulse contrast: >300:1 (1064 nm), >500:1 (532 nm), >1000:1 (355 nm)
• Power long term stability over 8 h: <1.0%
• Pulse energy stability: <1.0% (1064 nm), <2.0% (532 nm), <2.5% (355 nm)
• Pulse duration (FWHM) at 1064 nm: 10 ± 3 ps
• Polarization: linear, vertical 100:1
• M²: <1.3
• Beam circularity, far field: >0.85
• Beam divergence, full angle: <1.5 mRad
• Beam pointing stability (pk-to-pk): <50 µRad
• Beam diameter (1/e²) at 50 cm: 1.8 ± 0.3 mm (1064 nm), 1.8 ± 0.3 mm (532 nm, Atlantic 50), 2.2 ± 0.3 mm (532 nm, Atlantic 80), 1.8 ± 0.3 mm (355 nm, Atlantic 50), 2.0 ± 0.3 mm (355 nm, Atlantic 80)
• Triggering mode: internal / external
• Pulse output control: frequency divider, pulse picker, instant amplitude control, power attenuation
• Control interfaces: keypad / USB / RS232 / LAN
• Cooling: water
• Laser head size (L×W×H): 396 × 173 × 755 mm (single output 1064 nm), 396 × 173 × 1000 mm (single output 355 nm), 396 × 173 × 926 mm (3 outputs 1064 / 532 / 355 nm)
• Power supply unit size (L×W×H): 553 × 1019 × 852 mm
• Umbilical length: 4 m
• Mains requirements: 100–240 V AC, single phase 47–63 Hz
• Maximal power consumption: <3.1 kW (Atlantic 50), <3.5 kW (Atlantic 80)
• Operating ambient temperature: 18–27 °C
• Relative humidity: 10–80% (non-condensing)
• Air contamination level: ISO 9 (room air) or better
• Classification according EN60825-1: CLASS 4 laser product
