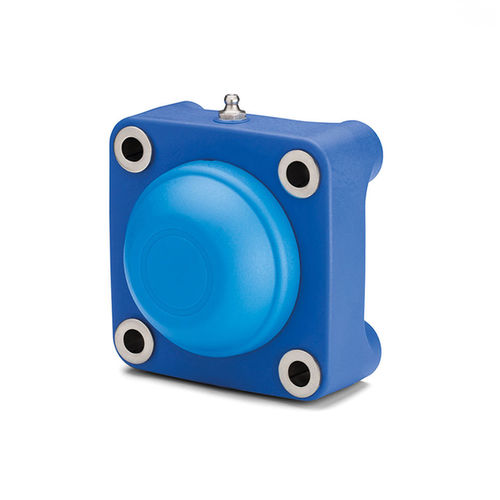

Flange bearing housing UCF-S-T series

stainless steelsteeltechnopolymer

Product

• Head bracket with closed cover (support bearing)
• Square flange with studs, technopolymer construction

Main specifications

• Bracket: glass-fibre reinforced polyamide (PA) technopolymer, RAL 5005 blue, matte finish.
• Bushings and washers: AISI 304 stainless steel.
• Bearing: chrome steel high-quality bearing with traceability codes.
• Lubricator: straight stainless-steel lubricator with G 1/8 thread.
• Packing rings: NBR rubber (VITON® available on request).
• Cover: glass-fibre reinforced polypropylene (PP) technopolymer, RAL 5015 blue, closed cap for head bracket or pass-through shafts.

Standard executions

• UCF-S-T: head bracket with closed cover.
• UCF-S-P: bracket for pass-through shaft with drilled cover and NBR packing ring for rotating shafts.

General information

• Overall dimensions comply with ISO 3228.
• Completely sealed packing rings protect the bearing from dirt ingress.
• Reduced contact surface of the support base facilitates sanitisation.
• Maximum shaft misalignment: 2.5°.

Instructions for use

• Designed for assembly with shafts without end stops.
• For optimum performance, apply periodic lubrication with grease resistant to high temperatures and oxidation.

Other / Special executions (on request)

• AISI 440C stainless-steel bearing.
• Bearings in inch sizes.
• Brackets for shafts with special diameters.
• Bracket in PA technopolymer compliant with FDA (RAL 5005) on request.
• PP brackets; packing rings and oil seals in VITON® on request.

Table - Available items (selected SKUs)
Code; Description; d [mm]; d1 [mm]; H [mm]; L [mm]; f [mm]; h1 [mm]; h2 [mm]; h3 [mm]; h4 [mm]; h5 [mm]; Bearing static load [N]; Bearing dynamic load [N]; Bracket load [N]; Weight [g]
419451; UCF.205-S-A-25-T-C55; 25; 10.5; 49.5; 99.5; 70; 22; 36.9; 47; 17.4; 15; 7800; 14000; 17000; 517
419461; UCF.206-S-A-30-T-C55; 30; 10.5; 55.7; 113; 83; 26; 41; 53.2; 20; 15; 11300; 19500; 17500; 720

Technical specifications

• Bracket material: glass-fibre reinforced PA technopolymer, RAL 5005.
• Cover material: glass-fibre reinforced PP technopolymer, RAL 5015.
• Bushings/washers: AISI 304 stainless steel.
• Bearing: chrome steel with traceability codes; AISI 440C available on request.
• Packing rings: NBR rubber; VITON® optional.
• Lubrication: straight stainless-steel lubricator, G 1/8 thread.
• Standards: overall dimensions compliant with ISO 3228.
• Max shaft misalignment: 2.5°.
• Selected load data: see table above for static/dynamic bearing loads and bracket loads.
