Butt hinge CFDX-G-C-B

technopolymerscrew-inbuilt-in

Description

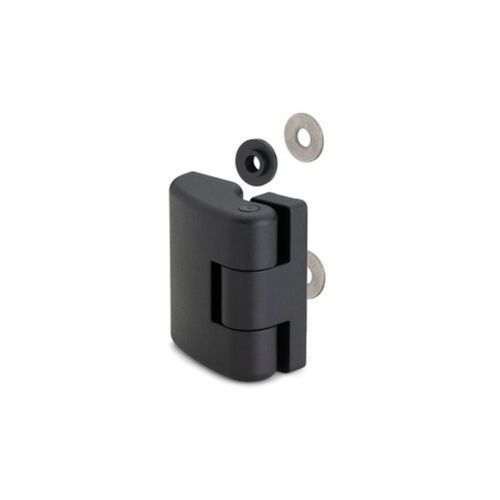

CFDX‑G hinge for narrow jambs. Designed for mounting on glass or panels; bodies in glass‑fibre reinforced SUPER‑technopolymer (PA), black matte finish. Available in flush (C) and non‑flush (R) executions with fixing options B (nuts), p (threaded studs) and SH (countersunk screw holes).

Main specifications

• Body material: glass‑fibre reinforced polyamide (PA) SUPER‑technopolymer, black, matte.
• Rotating pin: glass‑fibre reinforced PA SUPER‑technopolymer.
• Step washers: NBR rubber, 70 Shore A (included). Raw material compliant with FDA CFR.21 and EU 10/2011.
• Flat washers: A4 UNI 6593‑MT stainless steel (included).
• Max. door thickness for certain executions: 5 mm (R versions for flush/non‑flush mounting).

Standard executions

• CFDX‑G‑C‑B: stainless steel nuts with threaded hole on narrow body (jamb); brass blind‑threaded bushings on wide body (door).
• CFDX‑G‑C‑p: stainless steel threaded studs on narrow body (jamb); brass blind‑threaded bushings on wide body (door).
• CFDX‑G‑C‑SH: through‑holes with seat for countersunk screws on narrow body (jamb); brass blind‑threaded bushings on wide body (door). SH versions supplied disassembled.

Features and applications
The CFDX‑G hinge (registered design) comprises two differently sized bodies (wide and narrow) for use on structures with narrow jambs. Mounting type reduces tampering risk. Suited for glass or panel doors where corrosion resistance, light weight and electrical insulation are required.

Rotation angle (approx.)
Maximum ≈ 195° (range −5° to +190°, where 0° equals the two interconnected surfaces in the same plane). Do not exceed this limit to avoid degrading mechanical performance.

Installation notes

• For glass/panel mounting: drill hole Ø 10.5 ±0.2 mm in glass/panel (minimum thickness 4 mm).
• Place the hinge centring the matching part (d1) into the hole.
• On the opposite side insert step washers and flat washers and secure with screws (not included).

Performance tests (selected values)
(Columns separated by " | " ; rows separated by
)
Test for resistance - Axial Stress Ea [N] | Breaking load Ra [N] | Radial Stress Er [N] | Breaking load Rr [N] | 90° Angled Stress E90 [N] | Breaking load R90 [N]
CFDX‑G‑C.40‑B‑M5 | 488 | 2541 | 397 | 1613 | 347 | 1361
CFDX‑G‑C.40‑p‑M5x14.5 | 455 | 2569 | 362 | 1679 | 450 | 1458
CFDX‑G‑C.40‑SH.5 | 455 | 2822 | 455 | 1713 | 492 | 1377
CFDX‑G‑C.50‑B‑M6 | 909 | 2567 | 1051 | 2034 | 1211 | 2161
CFDX‑G‑C.50‑p‑M6x14.5 | 534 | 2330 | 1247 | 2194 | 1415 | 2365
CFDX‑G‑C.50‑SH.6 | 921 | 2795 | 1238 | 2818 | 1299 | 2899
CFDX‑G‑C.60‑B‑M6 | 820 | 3585 | 1152 | 2004 | 1676 | 2481
CFDX‑G‑C.60‑p‑M6x14.5 | 798 | 3106 | 1064 | 1904 | 1747 | 2510
CFDX‑G‑C.60‑SH.6 | 1072 | 3560 | 1092 | 3326 | 1877 | 4587

Instructions for use (assembly instructions)
For SH versions: assemble the narrow side to the jamb and the wide side to the door; insert the rotating pin from the side without diametric enlargement until it locks into the hinge body.

Variants / Available items
Product family CFDX‑G with item codes and sizes (examples): C.40‑B‑M5, C.40‑p‑M5x14.5, C.50‑B‑M6, C.60‑B‑M6 and corresponding R and SH versions. Variants define dimensions (L, B, f, d, etc.) and fixing types (nut, stud, countersunk holes).

Notes
Step washers (NBR) and flat A4 stainless steel washers are supplied. SH versions supplied disassembled to ease mounting. Do not exceed indicated rotation or load limits.

characteristics / technical specifications

• Series / Model: CFDX‑G
• Material: glass‑fibre reinforced PA (SUPER‑technopolymer), black, matte
• Rotating pin: glass‑fibre reinforced PA
• Seals / washers: NBR 70 Shore A (FDA/EU 10/2011 compliant)
• Flat washers supplied: A4 UNI 6593‑MT stainless steel
• Standard mounting: flush‑mounted door and jamb (CFDX‑G‑C‑...)
• Alternative mounting: non‑flush versions (CFDX‑G‑R‑...)
• Fixing options: threaded nuts, threaded studs, countersunk screw holes (B, p, SH variants)
• Max rotation angle: approx. 195°
• Tested mechanical loads: axial, radial and 90° angled stress values provided per specific item
• Application examples: mounting on glass or panels (hole Ø 10.5 ±0.2 mm, min thickness 4 mm)
