Butt hinge CMM
metalscrew-in90°

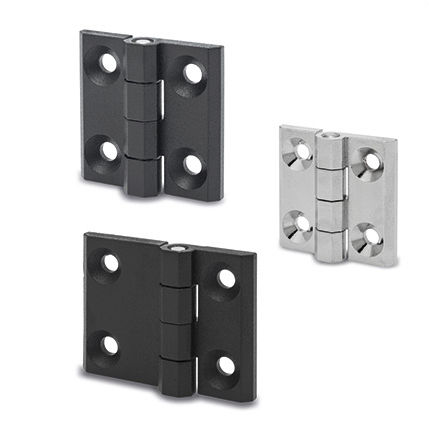

Butt hinge - CMM - ELESA - metal / screw-in / 90°
Butt hinge - CMM - ELESA - metal / screw-in / 90°
Butt hinge - CMM - ELESA - metal / screw-in / 90° - image - 2
Butt hinge - CMM - ELESA - metal / screw-in / 90° - image - 3
Butt hinge - CMM - ELESA - metal / screw-in / 90° - image - 4
Butt hinge - CMM - ELESA - metal / screw-in / 90° - image - 5
Add to favorites
Compare this product
Go to the ELESA website for more information

Characteristics

Type
butt
Material
metal
Installation
screw-in
Opening angle
90°, 270°
Other characteristics
rotating
Length

Min.: 30 mm
(1.181 in)

Max.: 60 mm
(2.362 in)

Width

Min.: 30 mm
(1.181 in)

Max.: 120 mm
(4.724 in)

Thickness

Min.: 9.5 mm
(0.374 in)

Max.: 16.5 mm
(0.65 in)

Description

MATERIAL Die-cast zinc alloy. ROTATING PIN AISI 303 stainless steel. STANDARD EXECUTIONS Pass-through holes for countersunk head screws: - CMM-SH: black painting, matte finish. - CMM-SH-CR: chrome-plated finish. Stainless steel threaded studs: - CMM-p: black painting, matte finish. - CMM-p-CR: chrome-plated finish. ROTATION ANGLE (APPROXIMATE VALUE) Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane). Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
