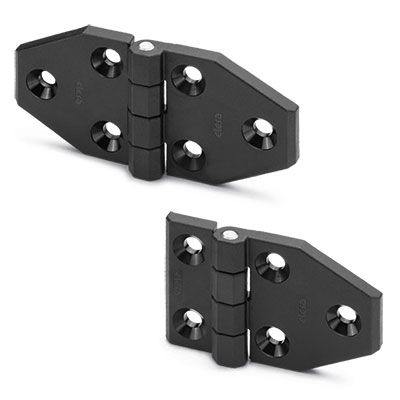

Technopolymer hinge CFM-TRscrew-in270°with stud
Add to favorites
Compare this product
Characteristics
- Material
- technopolymer
- Installation
- screw-in
- Opening angle
- 270°
- Other characteristics
- with stud
- Length
88 mm, 104 mm, 120 mm
(3.465 in, 4.094 in, 4.724 in)- Width
40 mm, 50 mm, 60 mm
(1.575 in, 1.969 in, 2.362 in)- Thickness
9 mm, 11.5 mm, 15 mm
(0.354 in, 0.453 in, 0.591 in)
Description
CFM-TR-A and CFM-TR-B hinges are ideal for applications where lightweight panels are involved, making the structure more stable thanks to an higher number of holes and ensuring an higher mechanical resistance. Compenents in SUPER-Technoplymer are able to guarantee the following advantages: high mechanical performance, corrosion resistance, lightness, nonmagnetic, low coefficient of friction, maintenance free, thermal insulation, coloured material throughout.
Material:
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.
Rotating pin:
AISI 303 stainless steel.
Standard executions:
Pass-through holes for countersunk head screws.
CFM-TR-A: hinge body frame side identical to the hinge body door side.
CFM-TR-B: hinge body frame side different to the hinge body door side.
