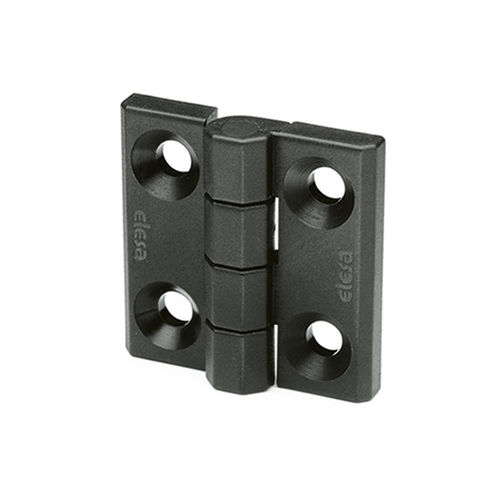

Pivot hinge CFMXPAtechnopolymerfiberglass
Add to favorites
Compare this product
Characteristics
- Type
- pivot
- Material
- PA, technopolymer, fiberglass
- Installation
- screw-in
- Opening angle
- 270°
- Other characteristics
- with stud
- Length
Max.: 60 mm
(2.362 in)Min.: 30 mm
(1.181 in)- Width
Max.: 60 mm
(2.362 in)Min.: 30 mm
(1.181 in)- Thickness
Max.: 15 mm
(0.591 in)Min.: 7 mm
(0.276 in)
Description
Hinges, SUPER-technopolymer rotating pin
Material:
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.
Rotating pin:
Glass-fibre reinforced polyamide based (PA) SUPER-tecnopolymer.
Standard executions:
CFMX-SH: pass-through holes for countersunk head screws.
CFMX-CH: pass-through holes for cylindrical head screws with washer type UNI 6592 / ISO 7089.
Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
