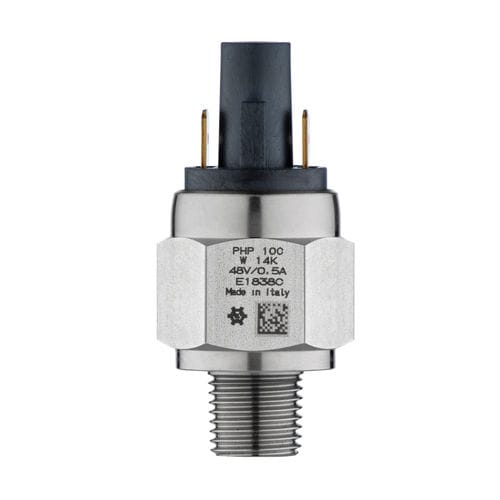

Diaphragm pressure switch PHPpistonNPT 1/4G 1/4
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston
- Process connection
- NPT 1/4, G 1/4, G 1/8
- Fluid
- for water, for steam
- Material
- stainless steel, brass
- Protection level
- IP65, IP54
- Applications
- industrial, for the chemical industry, for hygienic applications, sanitary wares
- Other characteristics
- adjustable, compact, stainless steel, high-precision, miniature, IP65, IP67, IP54
- Pressure range
Min.: 0 bar
(0 psi)Max.: 12 bar
(174.05 psi)- Switching power: current
0.2 A, 0.5 A
- Process temperature
Min.: -5 °C
(23 °F)Max.: 200 °C
(392 °F)
Description
Electrical connection - fast-on 6.3×0.8
Type of contact (no pressure) - NO – NC
Body material - Brass – Stainless steel AISI 316
Diaphragm/Piston gasket material - Tetrafluoroethylene propylene
Mechanical life - 106 cycles
Dimensions - Max. height 58 mm
Certifications - –
Executions on request - Set-point adjustment rising – Set-point adjustment falling – Gold-plated contacts – Oxygen degreasing – Gas test – IP67 protection – Special threads – Integrated damper
