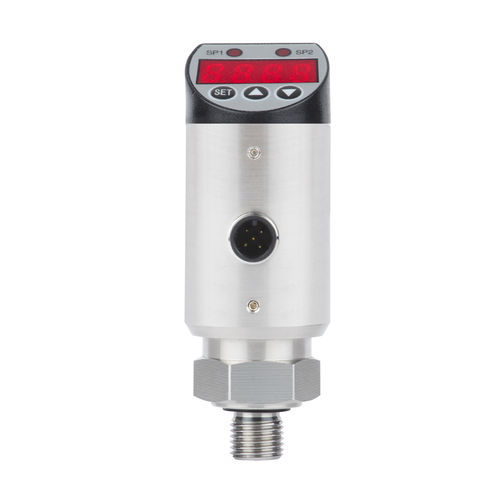

Electronic pressure switch EPX02PNPNPNM12 connector
Add to favorites
Compare this product
Characteristics
- Technology
- electronic
- Contact type
- PNP, NPN
- Electrical connection
- M12 connector
- Process connection
- G 1/4
- Protection level
- IP65
- Other characteristics
- IP65, with LED indicator
- Pressure range
Max.: 1,000 bar
(14,503.77 psi)Min.: -1 bar
(-14.5 psi)- Switching power: current
Max.: 20 mA
Min.: 4 mA
- Process temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Accuracy - ≤ 0.5% F.S. (standard)
Stability - 0.5% F.S./year
Display - LED, 4 digits
Response time - ≤ 4 ms
Output signal current - 0÷10 V, 4÷20 mA, 0÷5 V, 0÷4.5 V or others
Wetted parts material - AISI 316L
Sensor material - Silicone
Dimensions - Body Ch.27 Height max. 97 mm
Certification - CE
Catalogs
CONTROL DEVICES FOR FLUIDS
6 Pages
