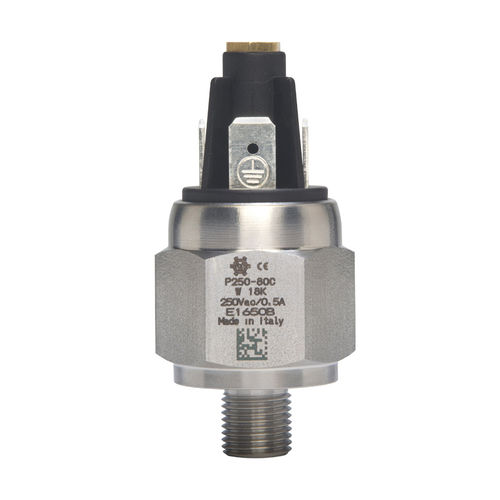

Gas pressure controller PM250 series

IP65adjustable

Adjustable pressure controllers for voltage ≤ 250 Vac Electrical connection - Faston 6.3 x 0.8 DIN 46248 Max. static pressure - 300 bar, 600 bar (according to possible pressure range and body material) Contact - NO – NC (without pressure) Body material - Brass – zinc plated steel – AISI 316 Diaphragm/ Seal material - NBR – FKM – Silicone – HNBR – Neoprene – EPDM – Stainless steel – Z Mechanical life - 106 operations Dimensions - Body Ch 24 – Max. high 49 Certification - CE Options - Snubber for pressure picks – Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen – Tested for applications with gas
