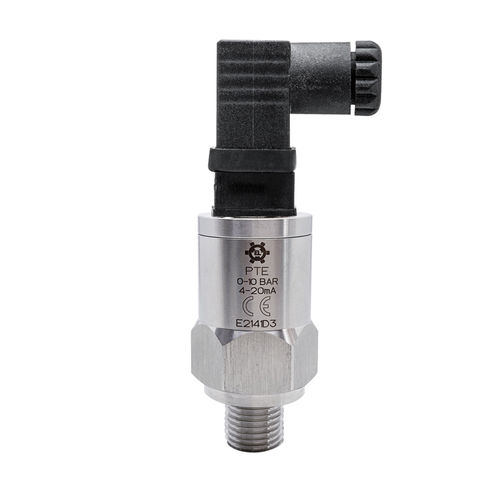

Relative pressure transducer PTE

current outputM12 connector24 Vdc

Supply voltage - 24 Vdc Wiring protection - against polarity reversal on power supply and against short circuit on output signal Current consumption - ≤ 30mA if current output – ≤ 8mA if voltage output Tightening torque - ≤ 20Nm Linearity, hysteresis, repeatability - ≤ 0.4% FS Response time - ≤ 5 ms Max. supportable static pressure - Burst pressure - Output type - Voltage 0-10V 3 poles minimum load 3KΩ – Current 4/20mA 2 poles I ≤ 30 mA Body material - Stainless steel AISI 316 Diaphragm/Piston gasket material - NBR (standard) Thread - G1/4BSPP – other threads available on request Mechanical life - 3×106 cycles Dimensions - Body Ch. 24 Max height 89mm Certifications - CE
