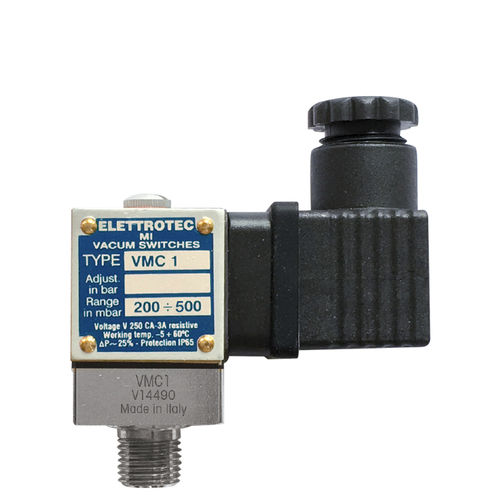

Diaphragm vacuum switch VMC seriesvacuumSPDTDIN rail
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- vacuum
- Contact type
- SPDT
- Mounting
- flange, DIN rail
- Fluid
- for oxygen
- Material
- stainless steel, aluminum, steel
- Protection level
- IP65
- Other characteristics
- adjustable, flange
- Pressure range
Max.: 20 bar
(290.08 psi)Min.: 0 bar
(0 psi)- Switching power: current
2 A, 3 A
- Process temperature
Max.: 60 °C
(140 °F)Min.: -5 °C
(23 °F)
Description
Adjustable vacuum switches with SPDT contacts
Electrical connection - DIN 43650 – PG09
Hysteresis - 30% of set-point
Contact - SPDT
Body material - Anodized aluminium- AVP steel
Diaphragm/ Seal material - NBR – FKM – Silicone – HNBR – Neoprene – EPDM
Mechanical life - 106 operations
Dimensions - Body 30 x 30 – Max. high 78 mm
Certification - CE – RINA – Lloyd’s Register
Options - Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen
