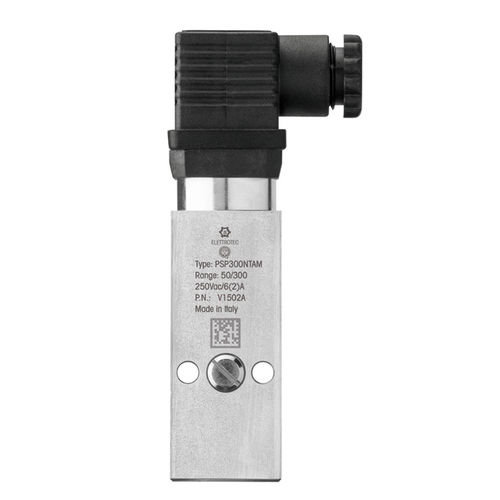

diaphragm pressure switch / adjustable / IP65
PSM-PSP ... AM

{{requestButtons}}

Characteristics

  • Technology:

    diaphragm

  • Other characteristics:

    adjustable, IP65

  • Process temperature:

    Min.: -30 °C (-22 °F)

    Max.: 140 °C (284 °F)

  • Pressure range:

    Min.: 0.22 bar (3.19 psi)

    Max.: 300 bar (4,351.13 psi)

Description

Switch rating6(2)A / 250Vac
Electrical connection DIN 43650 PG09
Adjusting range 0.22 bar; 1...10 bar; 10..50bar; 10..100bar; 30..150bar; 50..300bar
Max static pressure 30 bar
Hysteresis Adjustable 10% to 30% set-point
Operating temperature - 30C ...+140C
Contact (without pressure) SPDT
Body material Zinc plated
Diaphragm HNBR
Threads Manifold mounting G1/4 female Gauge port: G1/4
Protection IP65
Mechanical life 106 cicli
Size Body 30x30 Max height 114,3 mm
Certifications and Approvals CE, Lloyd's Register, IMQ, Rina
Options Set-point adjustment rising Set-point adjustment falling Factory set-point and hysteresis adjustment
