AdvancedTCA backplane 109ATCA506-1003R

6-10 slots

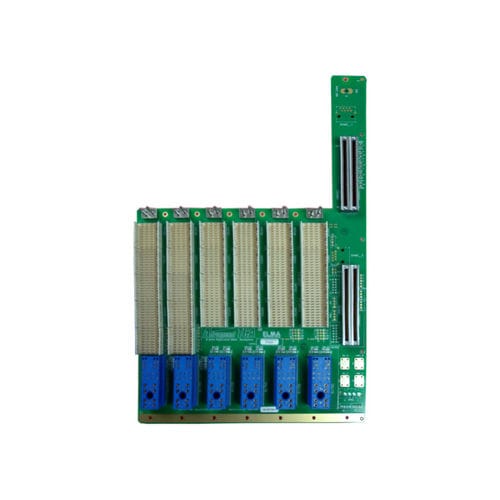

The 5U 6 slot ATCA backplane is a dual dual start with bused IPMB, designed to meet 40Gbps (4 x 10G ports) data rates. Elma Bustronic’s ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance. Product Features Up to 400W/slot 48VDC distribution to each slot Designed to meet 40Gbps ( 4 x 10G ports) data rates Based on design principles of IEEE 802.3-2012 (Section 5 Annex 69B.4), 10GBASE-KR, and 40GBASE-KR4 Triple replicated mesh topology Nelco 4000-13EP-SI high grade laminate material Extensive pre-layout and post-layout simulation studies Backdrilled to minimize stub reflections Very low insertion loss deviation (ILD) Dual shelf managers in slot 0, radial IPMB/I2C implementation
