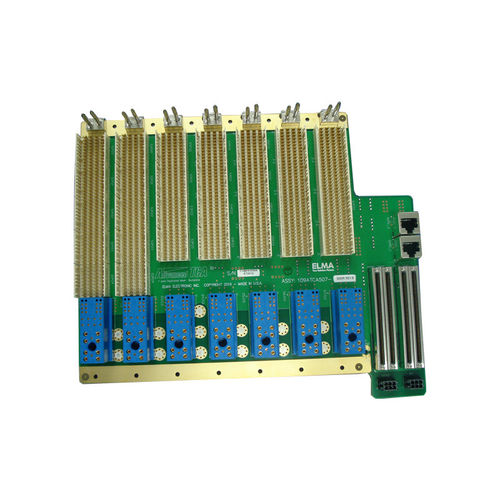

The 5U 7-slot ATCA backplane is a Replicated Mesh, compliant to the PICMG 3.0 Rev 3.0 specification. Elma Bustronic’s ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance.
Product Information
Item Description - ATCA 5U 7 Slot replicated Mesh - dual shelf managers
Extended Description - The 5U 7-slot ATCA backplane is a Replicated Mesh, compliant to the PICMG 3.0 Rev 3.0 specification. Elma Bustronic’s ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance.
Architecture - ATCA
Slots - 7
Technical Information
Height - 5U
Slot Count - 7
Topology - Mesh
