PCIe backplane 1SVX304AxP-xxxx

OpenVPX1-5 slots

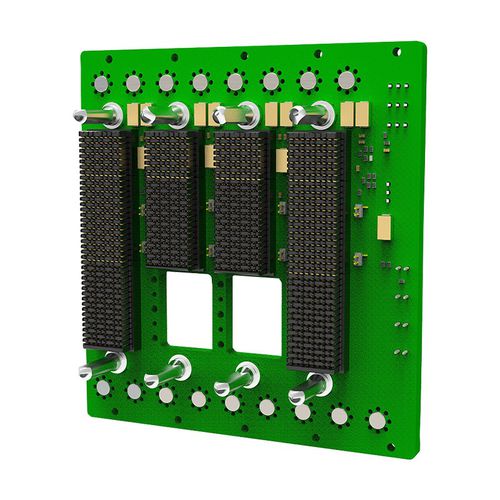

Designed in alignment with the SOSA, Elma's 3U 4-Slot backplanes offer 4 Plug in Card (PIC) slots to support MOSA, CMOSS and HOST initiatives. It support high-speed signals on all data paths and VITA 67.3 connectors and VITA 66.5 optical connectors. Product Features 3U OpenVPX backplane with four PIC slots in alignment with SOSA 1.0 Supports dual domain Ethernet switch 1/10/40 & 25/100 PNT slot profile SLT3x-TIM-2S1U22S1U2U1H-14.9.2 Routed Expansion plane links support PCIe Gen 4 data rates All control and data plane links are designed for 25 Gbps data rates and support 100GBASE-KR4 Maintenance serial ports routed to one header; Matched length, low skew REF and AUX clocks IPMC header for external chassis manager; power studs “Thin walled” connectors on the bottom front VPX wafer connector on slots with VITA 67.3 apertures allows non VITA 67.3 boards to plug in
