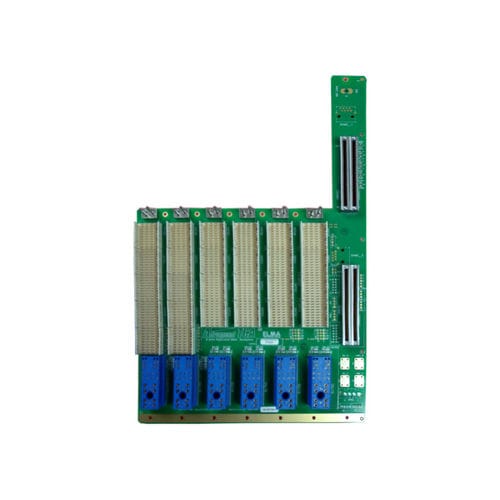

The 5U 6-slot ATCA backplane is a 3X Replicated Mesh, compliant to the PICMG 3.0 Rev 3.0 specification. Elma Bustronic’s ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance.
Product Features
Compliant to PICMG 3.0 Rev. 3.0 specification
Gigabyte/Terabyte per second bandwidth per shelf
Connections to IPM Sentry shelf manager
Controlled impedance stripline design
Mesh Topology (dual star and 1X, 2X, 3X Mesh topologies are implementable)
Pluggable shelf manager slots using MicroTCA.0 connectors
