PCIe backplane 1SVX302AMP-1X31

OpenVPX1-5 slots

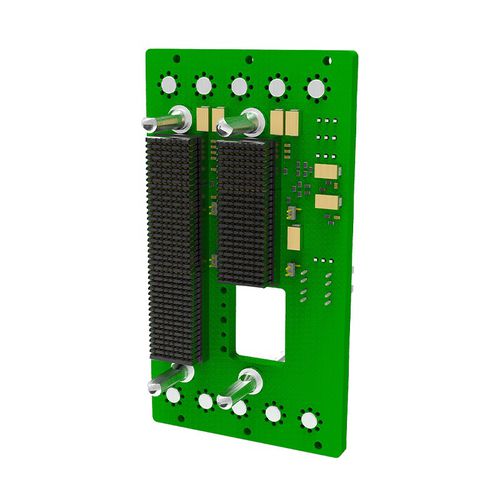

Designed in alignment with SOSA, this 3U backplane offers 2 Plug-in Card (PIC) slots to support the DoD’s MOSA and CMOSS initiatives. The backplane supports high-speed signals on all data paths and VITA 67.3c aperture in slot 2. Product Features Slot profiles in alignment with the SOSA Technical Standard Version 1.0 “Thin walled” connectors on the bottom front VPX wafer connector on slots with VITA 67.3 apertures to allow non VITA 67.3 boards to plug in. Two-slot 3U OpenVPX backplane aligned to SOSA • Slot 1: SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16-n, I/O Intensive Slot • Slot 2: SLT3-PAY-1F1U1S1S1U2F1H-14.6.11-n, Compute Intensive Payload Slot Matched length, low skew REF and AUX clocks IPMC header for external chassis manager Power studs Control and Data Plane links routed, designed for 25 Gbps data rates and support Routed Expansion plane links support PCIe Gen-4 data rates Routed Expansion plane links support PCIe Gen-4 data rates Maintenance serial ports routed to one header Unrouted signals pass to Rear Transition Module connectors, and are configured to support RTMs or Meritec cables
