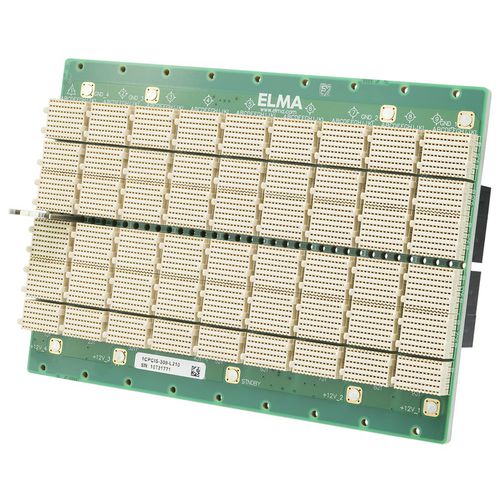

CompactPCI backplane 1CPCIS-309-L210 PICMGPCI Express6-10 slots
Add to favorites
Compare this product
Characteristics
- Bus standard
- PICMG, CompactPCI, PCI Express
- Number of slots
- 6-10 slots
Description
3U CompactPCI Serial Backplane with 9 CompactPCI S.0 slots, system slot left, with rear IO : 1x CompactPCI S.0 CPU slot, 8x CompactPCI S.0 peripheral slots, with connectors for RTMs (RearTransition Modules) in slots 2 to 9, Ethernet full mesh
Product Features
CompactPCI Serial (PICMG CompactPCI-S.0) compliant backplane
High-speed connectors supporting data transfer rates up to 12Gbps in all 9 slots
Single star topology for serial interfaces such as PCI Express, SATA, USB2 and USB3 are provided by the CPCI S.0 system slot
Europacard form factor in 3U height
Ethernet routed as full mesh on the backplane
Designed to support Rear Transition Modules
With RTM connectors
