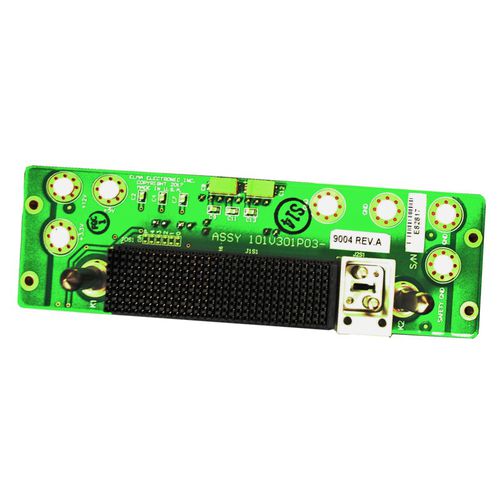

OpenVPX backplane 101V301P03-90041-5 slots
Add to favorites
Compare this product
Characteristics
- Bus standard
- OpenVPX
- Number of slots
- 1-5 slots
Description
3U 1-Slot OpenVPX Power & Ground, Aperture E, Supports VITA 66.4/67.3A/67.1 in J2B, Module TE 2226880-1, Pass through with VITA 66.4 ctr in J2B and RT2-R ruggedized VPX conn, w/o ROHS, Max data rate (Gbps) 3.125
Product Features
3U 1-Slot OpenVPX Power & Ground
Aperture E
Pass through with VITA 66.4 ctr in J2B and RT2-R ruggedized VPX conn
3.125G, Max data rate (Gbps)
Compliant to the latest VITA 46 / 65 specifications
Power and ground only backplane for simple and lowcost development
3.3V, 5V, 12V, 3.3V_AUX, +12V_AUX, and -12V_AUX power circuits are all present
P0-P6 pins are user-defined
NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
