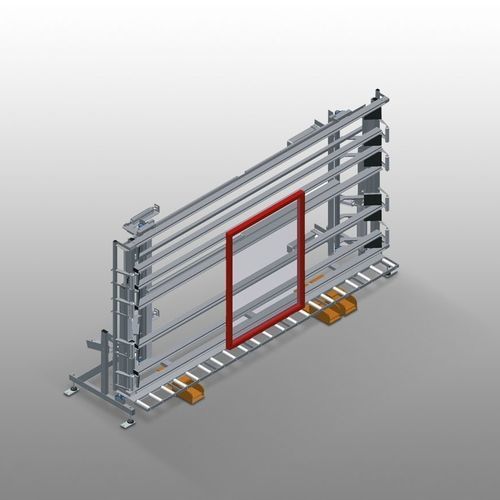

Glazing bench VE 3000

Overview
Glazing and control unit for glazing operations and final inspection in single-item and serial production.

Key features

• Stable steel construction for workshop and production environments
• Fast, precise assembly of windows, doors and frame elements
• Accuracy achieved by parallel press bars
• Designed for glazing operations and functional testing
• Coupling capability for frame and sash alignment
• Continuous height adjustment (500 mm)
• Two pneumatically foldable and movable press beams
• Simple operation via foot switch
• Four-way compressed air connection (7 bar)
• Tool storage and recess for drip edge

Options

• Complete feed rollers, right side (protective rollers for conveyor start/end)
• Complete feed rollers, left side (protective rollers for conveyor start/end)
• Profile protector for support rollers (200 mm with protective sleeve for aluminium elements)
• Pneumatic tilt adjustment from 0° to 8°
• Travel unit with flanged rollers and parking brake (optional)
• Guiding rails 2.0 m, left and right (optional)

Technical specifications

• Length: 4,410 mm
• Width: 1,180 mm
• Height: 2,600 mm
• Max clamping width: 3,000 mm
• Min clamping width: 400 mm
• Height adjustment: 500 mm
• Press beam height: 2,300 mm
• Press beam width: 120 mm
• Lower roller conveyor width: 200 mm
• Weight: 470 kg
• Load capacity: 200 kg
• Compressed air connection: 7 bar
• Air consumption: 35 l/min
