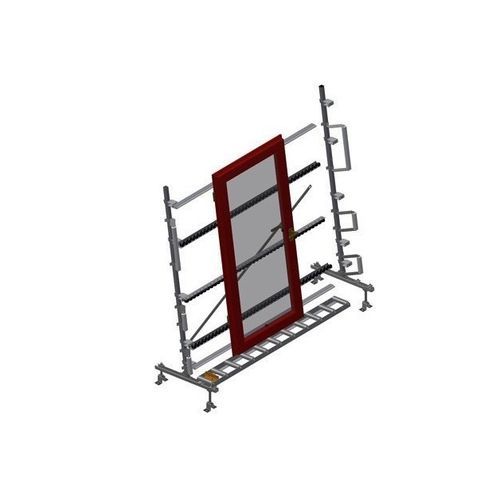

Roller conveyor VR 2000

verticaltransporthandling

Overview
Vertical roller conveyor for the transport and storage of window elements.

Main features

• Stable steel construction
• Modular system extendable
• Vertical roller conveyor for continuous transport and storage of window elements
• Easy handling of window elements
• Each conveyor unit length: 2,000 mm
• PVC glide rails top and bottom for rear installation
• Three roller rows with rubber rollers, diameter 50 mm
• Basic unit supplied without end support

Options

• End support
• End stop
• Entry roller
• Profile protector for carrier rollers (aluminium)

Details and variants (extracts)

• Adjustable roller-row support: height-adjustable roller support
• End support (optional): end support required at the end of the line (optional)
• End stop (optional): end stop Rb = 200 mm for VR (optional)
• Entry/exit protection rollers (optional): protective rollers for start/end of conveyor L = 500 mm (pair) and L = 250 mm (pair)
• Profile protector (optional): profile protector for carrier rollers 200 mm (Alu/11x and Alu/16x); carrier rollers with protective sleeve
• Additional roller rows (optional): additional roller rows with rubber rollers top/bottom
• Carrier rollers: continuous roller shafts, carrier roller width 200 mm; units available in lengths 2,000 mm, 3,000 mm and 4,000 mm
• Installation: rear installation with PVC glide rails top and bottom
• Height adjustment: lower roller row height adjustable via leveling feet

Technical data / specifications

• Length: 2,000 mm
• Width: 900 mm
• Height: 2,400 mm
• Carrier roller width: 200 mm
• Installation height: 2,100 mm
• Load capacity: 200 kg
• Weight: 80 kg
