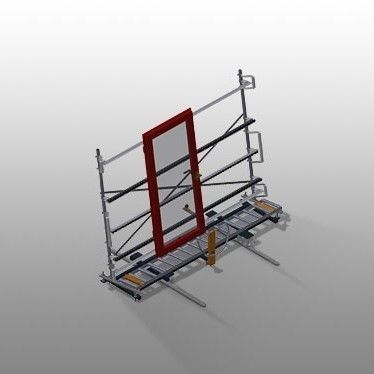

Roller conveyor VR 3003 DF

verticaltransportsorting

Overview

• Stable steel frame construction
• Vertical roller conveyor for continuous transfer to the next machining stage and for transport to storage and sorting of finished window elements
• Easy handling of window units
• Each roller conveyor unit length: 3 000 mm
• Upper and lower PVC sliding guides
• Three rubber roller tracks, roller diameter 50 mm
• Base unit with end post
• Vertical roller conveyor on flanged-wheel rails, mobile
• 360° swivel capability

Options / Accessories

• 2.0 m travel rail, left and right
• End stop for VR (Rb = 3 x 120 mm)
• Infeed protector rollers for VR (L = 500 mm pair / L = 250 mm pair)
• Profile protector for support rollers (alu/48 x, alu/63 x) and protective hose for rollers

Component details and options (descriptions)
Travel unit
Mobile unit with flanged wheels and locking brake for site mobility.

End stop (Optional)
End stop Rb = 3 x 120 mm for VR units.

Infeed roller (Optional)
Protective rollers for start or end of roller conveyor L = 500 mm (pair) / L = 250 mm (pair).

Profile protector (Optional)
Profile protector for support rollers 3 x 120 mm (Alu/48 x, Alu/63 x). Support rollers covered with protective hose.

Additional roller tracks (Optional)
Additional roller tracks with rubber rollers top/bottom (diameter 50 mm).

Travel rail (Optional)
2.0 m travel rails left and right for on-site mobility.

Support rollers
Continuous belt rollers, support roller width 3 x 120 mm.

Installation
Rear installation with upper and lower PVC sliding guides.

Handle
Handle to facilitate pushing the roller conveyor along the rails.

Characteristics / Technical specifications

• Length: 3 000 mm
• Width: 1 000 mm
• Height: 2 490 mm
• Support rollers: divided into 3 sections, 3 x 120 mm
• Installation height: 2 100 mm
• Load capacity: 200 kg
• Weight: 200 kg
