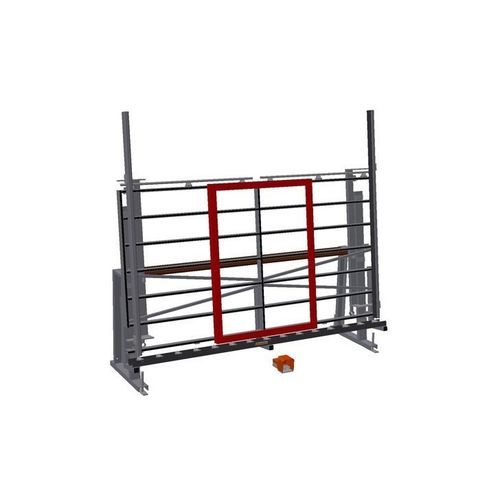

Glazing bench VE 3000/60

Overview
Control and glazing unit for glazing operations and final inspection

Key features

• Stable steel construction
• Fast and accurate assembly of windows, doors and elements
• Accuracy through parallel press-clamp bars
• Designed for glazing and operational check
• Coupling of frame and sash
• Manually tilting clamping bar
• Pneumatic centreing
• Simple operation via foot switch
• Tool storage
• Quadruple compressed-air connection

Options

• Height adjustment VE 3000/60

Accessories and variants / items listed

• Support: lower roller conveyor with carrier rollers L = 120 mm
• Foot switch: all functions controlled by foot valves
• Quadruple compressed-air connection: connection for pneumatic tools
• Height adjustment (optional): stepless height adjustment, L = 500 mm
• Clamping bar: pneumatic centreing; accuracy by parallel press-clamp bars
• Back stop: rear support with PVC sliding rails

Technical data / specifications

• Length: 3,050 mm
• Width: 900 mm
• Height: 2,600 mm
• Max. clamping width: 2,800 mm
• Min. clamping width: 390 mm
• Clamping bar height: 2,300 mm
• Clamping bar width: 100 mm
• Lower roller conveyor width: 120 mm
• Weight: 370 kg
• Load capacity: 200 kg
• Compressed-air connection: 7 bar
• Air consumption: 35 l/min
