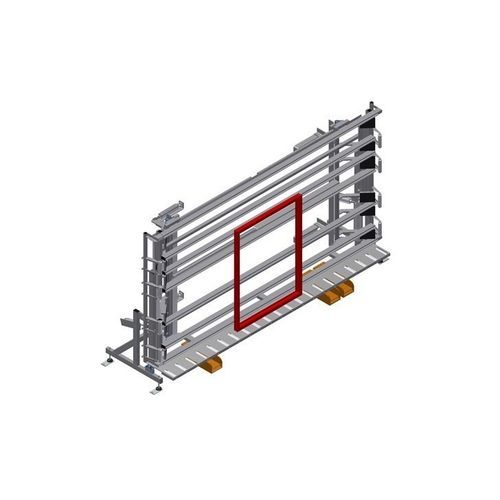

Glazing bench VE 4000
Add to favorites
Compare this product
Description
Description
Control and glazing unit for glazing and final inspection in single-piece and series production.
Main features
Options
Optional accessories / detailed options
Technical characteristics / specifications
Control and glazing unit for glazing and final inspection in single-piece and series production.
Main features
- Stable steel construction
- Fast, accurate assembly of windows, doors and elements
- Accuracy through parallel clamping bars
- For glazing and operational testing
- Coupling of frame and sash
- Stepless height adjustment
- Two pneumatically foldable and movable press bars
- Easy operation via foot switch
- Quadruple compressed air connection
Options
- Complete infeed rollers, right (optional)
- Complete infeed rollers, left (optional)
- Profile protector for support rollers (optional)
- Inclination adjustment 0°–8° (optional)
- Travel unit for KT/KTH/MS/VE with flanged rollers and parking brake (optional)
- 2.0 m travel rail left and right (optional)
- Rear support with PVC slide rails (optional)
- Lower roller conveyor with support rollers L = 200 mm (optional)
- Foot switch — all functions operated by foot valves (optional)
- Press bar — synchronous folding and travel of press bars to reduce opening/closing time and allow free passage of the window (optional)
Optional accessories / detailed options
- Infeed rollers complete, right — protective rollers for start or end of roller conveyor
- Infeed rollers complete, left — protective rollers for start or end of roller conveyor
- Inclination adjustment 0°–8° — pneumatic inclination adjustment
- Profile protector — protector for support rollers 200 mm (aluminium). Support rollers covered with protective sleeve for aluminium elements
- Travel unit — travel device for KT/KTH/MS/VE with flanged rollers and parking brake
- Travel rail — 2.0 m rails, left and right
- Rear support — rear rest with plastic sliding rails
- Lower roller conveyor — lower roller conveyor with support rollers L = 200 mm
- Foot switch — all functions controlled by foot valves
- Press bars — synchronous folding and travel of press bars, reducing press opening/closing time and allowing free passage of the window
Technical characteristics / specifications
- Length: 5440 mm
- Width: 1180 mm
- Height: 2600 mm
- Max clamping width: 4000 mm
- Min clamping width: 390 mm
- Height adjustment: 500 mm
- Press bar height: 2300 mm
- Press bar width: 200 mm
- Lower roller conveyor width: 200 mm
- Weight: 580 kg
- Load capacity: 200 kg
- Compressed air connection: 7 bar
- Air consumption: 35 l/min.
