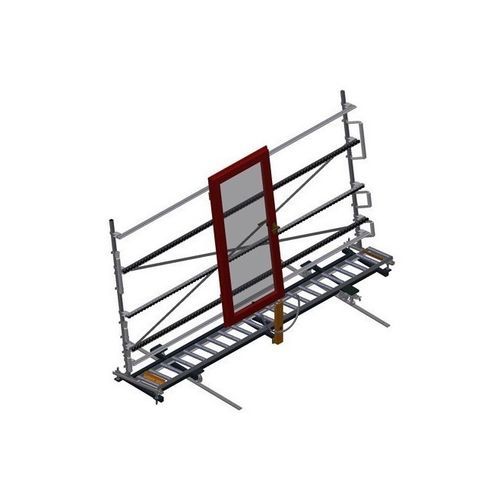

Roller conveyor VR 4003 F

skate wheelverticaltransport

Description
Vertical roller conveyor for transporting window elements.

• Stable steel construction
• Vertical roller conveyor for continuous transfer to the next machining step and for transport to storage and sorting of finished windows
• Simple handling of window elements
• Each roller conveyor unit 4 000 mm long
• PVC sliding guides top and bottom
• Three roller tracks with rubber rollers, diameter 50 mm
• Base unit with end support
• Vertical roller conveyor on rails with flanged wheels, mobile

Options

• 2.0 m travel rail left and right
• End stop for VR
• Infeed roller for VR
• Profile guard for carrying rollers (aluminium)

Accessories and components (detailed)

• Travel unit: travel device with flanged rollers and locking brake
• End stop: Rb = 3 x 120 mm
• Infeed roller: protective rollers for start or end of roller conveyor L = 500 mm (pair) / L = 250 mm (pair)
• Profile guard: profile protection for carrying rollers 3 x 120 mm (Alu/33 x and Alu/48 x), carrying rollers covered with protective sleeve
• Additional roller tracks: rubber rollers top/bottom
• Travel rails: travel rails 2.0 m left and right
• Carrying rollers: continuous band rollers, roller conveyors divided into three 3 x 120 mm, conveyor units 2 000 mm, 3 000 mm and 4 000 mm long
• Roller belts: three roller tracks with rubber rollers, diameter 50 mm
• Installation: rear installation with PVC sliding guides top and bottom
• Handle: handle for easy moving of the roller conveyor on rails

Characteristics / technical specifications

• Length: 4 000 mm
• Width: 1 000 mm
• Height: 2 490 mm
• Rollers divided into three: 3 x 120 mm
• Installation height: 2 100 mm
• Load capacity: 200 kg
• Weight: 200 kg
