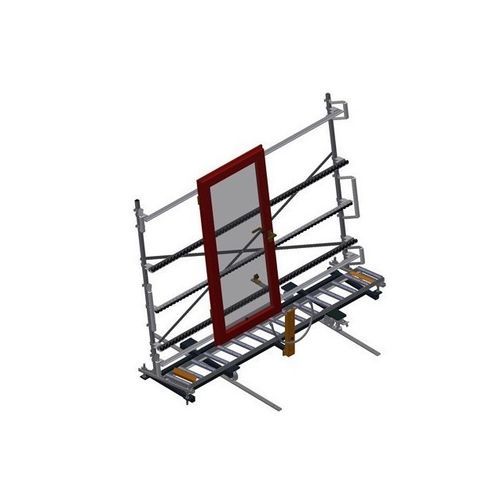

Roller conveyor VR 3003 F

verticaltransporthandling

Description
Vertical roller conveyor for transporting window elements.

• Stable steel construction
• Vertical roller conveyor for continuous transport to the next machining station and for transport for storage and sorting of finished windows
• Easy handling of window elements
• Each roller conveyor unit 3,000 mm long
• PVC sliding rails top and bottom
• Three roller tracks with rubber rollers, diameter 50 mm
• Basic unit with end support
• Vertical roller conveyor mounted on rails with flanged wheels, mobile

Options

• 2.0 m travel rail left and right
• End stop for VR
• Feed roller for VR
• Profile protector for support rollers (aluminium)

Components and optional items

• Travel unit: Travel device with flanged rollers and parking brake
• End stop (optional): End stop Rb = 3 x 120 mm
• Feed roller (optional): Protective rollers for start or end of roller conveyor L = 500 mm (pair) and L = 250 mm (pair)
• Profile protector (optional): Profile protector for support rollers 3 x 120 mm (alu/33x and alu/48x). Support rollers covered with protective sleeve
• Additional roller tracks (optional): Additional roller tracks with rubber rollers top/bottom
• Support rollers: Continuous track rollers, support rollers divided into three 3 x 120 mm; roller conveyor units available in lengths 2,000 mm, 3,000 mm and 4,000 mm
• Roller belts: Three roller tracks with rubber rollers, diameter 50 mm
• Installation: Rear installation with PVC sliding rails top and bottom
• Handle: Handle to facilitate moving the roller conveyor on rails
• Travel rail: 2.0 m travel rails left and right

Characteristics / technical specifications

• Length: 3,000 mm
• Width: 1,000 mm
• Height: 2,490 mm
• Support rollers divided in three: 3 x 120 mm
• Installation height: 2,100 mm
• Load capacity: 200 kg
• Weight: 180 kg
