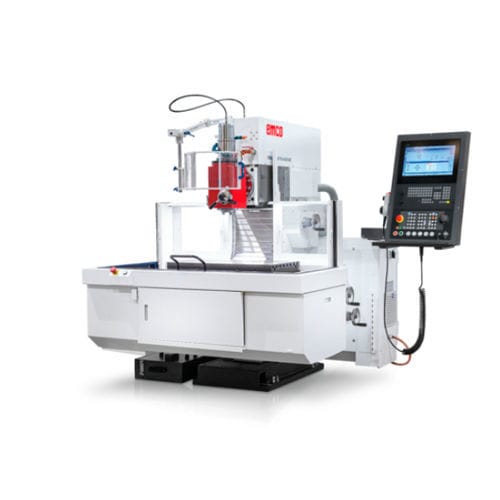

3-axis CNC milling machine Emcomat FB-600 MC

universalwith moving tableSK40

Swivel-mounted control panel Shafts and gears hardened and ground Reversible main spindle Linear guides Sinumerik 828D or Heidenhain TNC 620 Covers eliminate the risk of injuries Main motor with spindle brake Highlights Coolant device Swiveling vertical milling head Automated stepless feed in X, Y and Z axes Mechanical safety handwheels with scale ring Linear guides in X/Y/Z Swiveling device Swivel-mounted vertical milling head. Controlled by end switch. Retractable workspace Retractable workspace guard with vertical clamping area. Chip shield A large chip shield at the front of the machine allows for trouble-free chip disposal Swivel-Mounted Vertical Milling Head Swiveling vertical milling head with quill function for manual Drilling operations. A swivel range of +/-90° allows to easily perform even difficult machining operations. Workpieces Examples of use For production-oriented users Apparatus and prototype construction Education and training Options/Accessories Safety cover More safety during the machining process due to the cover mounted on the hinged bracket. Various measuring devices Measuring sensor in order to control the positions of the compound slide rest and of the clamping table. Software/Control Sinumerik 828D with Manueller Maschine The Manual Machine operating area provides you with machining capabilities as for a cycle milling machine. All important machining actions can be performed without an associated part program needing to be created. The following functions are available: Measure tool Traverse axes Set zero offset (ZO) Drill, such as centered drilling, centering, deep-hole drilling
