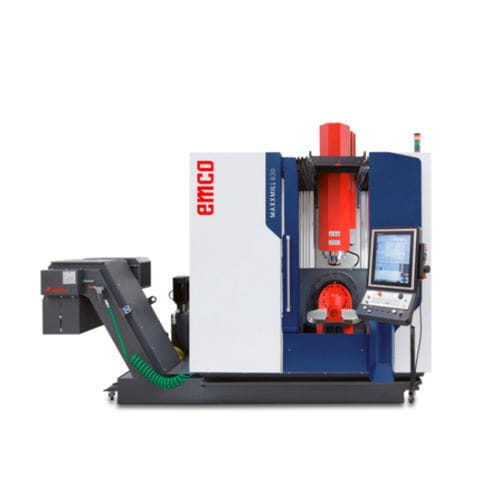

5-axis CNC milling center MAXXMILL 630

verticalcolumn typerotating table

EMCONNECT – Digital Process Assistant (Sinumerik ONE) Highlights Cutting-edge control technology from Siemens or Heidenhain Massive swivel-rotary table with 630 x 500 mm (24.8 x 19.6") provides high stability and precision Optimal chip removal Made in the Heart of Europe The swivel-rotary table has a large clamping area of 630 x 500 mm (24.8 x 19.6") and can bear loads of up to 250 kg (551.1 lb). This makes it possible to simply machine workpieces with an edge size of 445 x 445 x 290 mm (17.5 x 17.5 x 11.4"). The special shape of the table allows the spindles to move closer to the table center. With a travel range of +/- 100°, the B axis provides a larger work area than most products from other manufacturers. The C axis can be infinitely rotated by 360°. Options/Accessories Laser device for presetting, breakage check and profile measuring tools A light barrier mounted on machine table scans the tool edges and automatically takes over the values into the tool offset memory for further processing. Automatic workpiece measuring The workpieces are automatically measured by an infrared measuring probe that is mounted on the main spindle. Measuring cycles take over the values. Increased coolant pressure with internal coolant supply A swivel guide with a coolant pump with 20 bar cools spindle and tools.Alternatively cooling by air is possible. Software/Control Sinumerik ONE with Operate The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.
