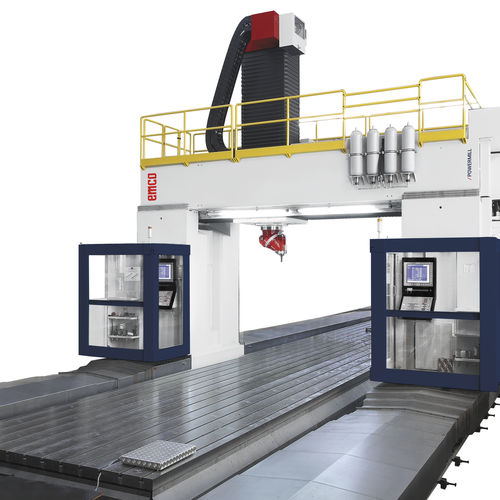

Gantry CNC milling center POWERMILL
3-axisuniversalwith rotary table

gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
gantry CNC milling center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
universal
Structure
gantry, with rotary table
Spindle mount
ISO 50, HSK-63-A, HSK-100-A
Number of tool stations
120 tools, 80 tools, 48 tools, 64 tools
Associated functions
drilling, tapping
Applications
for the aerospace industry, for molds, heavy-duty, for the wood industry
Other characteristics
high-precision, high-power, with automatic tool changer
X travel

6,000 mm
(236.22 in)

Y travel

4,000 mm, 5,000 mm, 6,000 mm, 7,000 mm
(157.48 in, 196.85 in, 236.22 in, 275.59 in)

Z travel

1,500 mm, 2,000 mm, 2,500 mm
(59.06 in, 78.74 in, 98.43 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 3,000 rpm
(18,850 rad.min-1)

Power

Max.: 86 kW
(116.93 hp)

Min.: 40 kW
(54.38 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Description

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks. With the Sinumerik ONE you rely on: highest performance and flexibility universal openness highly effective personal and machine protection Sinumerik & EMCONNECT, the digital process assistant EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view. The new SINUMERIK ONE has been specially developed for smart manufacturing. Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other Significant reduction in product development and time-to-market thanks to the digital first strategy Improved networking and data communication capabilities Significant reduction in the duration of real commissioning through virtual preparation for commissioning Significantly increased CNC performance Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows. Heidenhain TNC 640 HSCI The Heidenhain control unit is designed to simplify programming in the shop floor, providing an interactive programming environment, where the operator communicates with the control system through clear and easily comprehensible language.
