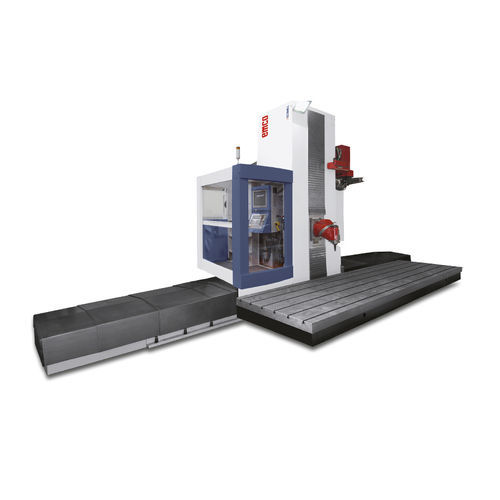

Universal CNC machining center ECOMILL5-axistraveling-columnHSK-100-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Structure
- traveling-column
- Spindle mount
- HSK-100-A, HSK-63-A
- Number of tool stations
- 40 tools, 60 tools, 80 tools
- Other characteristics
- milling, direct-drive, precision, high-speed
- X travel
Max.: 14,000 mm
(551 in)Min.: 4,000 mm
(157 in)- Y travel
1,300 mm
(51 in)- Z travel
2,000 mm, 2,500 mm
(79 in, 98 in)- Rotational speed
Max.: 8,000 rpm
(50,265 rad.min-1)Min.: 15 rpm
(94 rad.min-1)- Power
60 kW
(81.58 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Overall length
9,250 mm, 11,250 mm, 13,400 mm, 15,800 mm
(364.2 in, 442.9 in, 527.6 in, 622 in)- Overall width
6,100 mm, 8,250 mm
(240.2 in, 324.8 in)- Overall height
4,300 mm, 4,700 mm
(169.3 in, 185 in)
Description
HIGHLIGHTS
/ High dynamics and precision thanks to milling heads with torque motors
/ Universal Machining Centre ready for Industry 4.015 ° undercut on the universal milling head with high-speed spindle
/ Direct drive technology on all milling heads and a wide range of applicable heads with high-speed spindle
/ Automatic tool changer installed on the column up to 80 pockets or automatic tower tool changer up to 203 pockets
/ Machine configuration according to customer’s requirement
EQUIPMENT
/ Column symmetric structure allows to achieve high stiffness
/ Universal Machining Centre with Horizontal ram and column in "box-in-box" design
/ Power milling heads 3+2 axes up to 38 kW, 600 Nm, 8000 rpm
/ Milling head with electrospindle: 40,5 kW, 35,4 Nm, 18000 rpm
/ Basic machine includes chip conveyor
/ Heidenhain/Siemens numerical control
