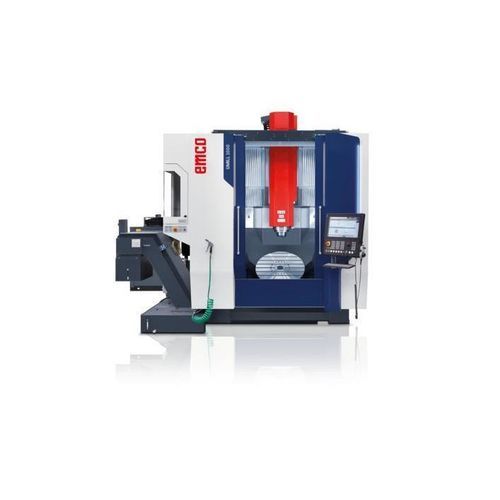

5-axis CNC milling machine UMILL 1000

universalwith rotary indexing tabletraveling-column

Product Highlights: - 5-axis simultaneous machining in a gantry structure - Top thermostability - Universal machining center with top machining precision - Modern moving column concept with optimal accessibility - Solid swivel-rotary table with torque motors, direct measuring systems, dimensions of Ø 800 mm provide high stability and precision - Wide swivelling range +/-125° - Standard linear scales in X-Y-Z - Cutting-edge control technology from Siemens or Heidenhain - EMCONNECT available for Sinumerik - Extensive options such as 60 / 90 tool stations magazine - Optimal chip removal - Flexible for automation (front) Technical Data: - Work area: - Travel in X/Y/Z: 900 mm / 1000 mm / 700 mm - Distance spindle nose: 170 / 870 mm - Axes feed rate: 15 m/min - Rapid motion speeds in X/Y/Z: 50 m/min - Table: 1000 kg - Clamping area: 800 x 800 mm - Max. table load: 1000 kg - Motor spindle: - Max. speed: 50 - 15000 rpm - Drive power: 38 kW - Max. Torque: 138 Nm - Tool change: - Number of tool stations: 30 (60/90) - Max. tool diameter: 80 mm - Max. tool length: 350 mm - General data: - Dimensions (LxWxH): 3450 x 4750 x 3630 mm - Machine weight: 18000 kg Machine Highlights: - 5-axis simultaneous machining in a gantry structure - Top thermostability and universal machining center with top machining precision - Modern moving column concept with optimal accessibility - Wide swivelling range +/-125° - Standard linear scales in X-Y-Z - Cutting-edge control technology from Siemens or Heidenhain - EMCONNECT available for Sinumerik - Extensive options such as 60 / 90 tool stations magazine - Optimal chip removal - Flexible for automation (front) Software/Control: - Sinumerik ONE with Operate: The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks. - Highest performance and flexibility - Universal openness - Highly effective personal and machine protection - EMCONNECT, the digital process assistant, included in the standard machine - Digital twin is an integral part of the CNC control - Significant reduction in product development and time-to-market - Improved networking and data communication capabilities - Significant reduction in the duration of real commissioning through virtual preparation - Significantly increased CNC performance - Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC - Heidenhain TNC 7: With the new TNC7 control from HEIDENHAIN, users and machine tool builders experience completely new possibilities in the programming and operation of their machines. Operation is intuitive, task-oriented and customised, making work in the workshop faster, safer and more pleasant. - 24 control loops, 4 of which are spindles - Very high operating dynamics and fluid, intuitive multi-touch operation - Milling and turning operations - Intuitive set-up of workpieces with smart probing functions - Graphically supported alignment of clamping devices - Short block processing time (0.5 ms) - High-end performance for perfect surfaces and highest accuracy - Integrated process monitoring Overall dimensions/Work space: - Dimensions (LxWxH): 3450 x 4750 x 3630 mm - Work area: 800 x 800 mm - Max. table load: 1000 kg Additional Features: - DIRECT DRIVES: The direct drives in X- and Y-axis allow to reach high performances in acceleration (6 m/s²) and in rapid motion speeds (50 m/min). This ensures maximum precision and high dynamics. - SWIVEL-ROTARY TABLE: Solid swivel-rotary table with torque motors, direct measuring systems, dimensions of Ø 800 mm provide high stability and precision. - CLOSING FLAP FOR TOOL MAGAZINE: The stainless steel closing flap separates the work area from the tool magazine during tool changes, ensuring greater cleanliness. - TOOL CHANGER: Tool changer with space for 30 tools. 60 or 90 optionally available. Characteristics / Technical Specifications: - 5-axis simultaneous machining - Gantry structure - Top thermostability - High machining precision - Modern moving column concept - Solid swivel-rotary table (Ø 800 mm) - Wide swivelling range +/-125° - Standard linear scales in X-Y-Z - Siemens or Heidenhain control - EMCONNECT for Sinumerik - 30/60/90 tool stations - Optimal chip removal - Automation ready (front) - Travel in X/Y/Z: 900/1000/700 mm - Distance spindle nose: 170/870 mm - Axes feed rate: 15 m/min - Rapid motion speeds: 50 m/min - Table load: 1000 kg - Clamping area: 800 x 800 mm - Max. speed: 50-15000 rpm - Drive power: 38 kW - Max. torque: 138 Nm - Max. tool diameter: 80 mm - Max. tool length: 350 mm - Dimensions: 3450 x 4750 x 3630 mm - Machine weight: 18000 kg
