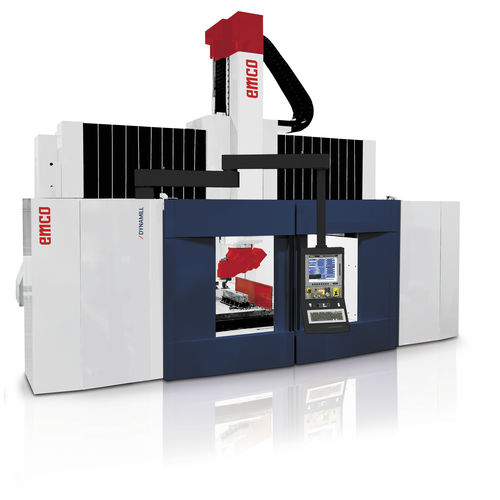

Gantry CNC milling center DYNAMILL5-axisverticalHSK-100-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Spindle mount
- HSK-63-A, HSK-100-A
- Other characteristics
- high-precision, high feed rate, compact, modular
- X travel
4,550 mm
(179 in)- Y travel
Min.: 3,000 mm
(118 in)Max.: 4,000 mm
(157 in)- Z travel
1,500 mm, 2,000 mm, 2,500 mm
(59 in, 79 in, 98 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 24,000 rpm
(150,796 rad.min-1)- Power
60 kW
(81.58 hp)- Overall length
9,500 mm, 12,000 mm, 14,500 mm
(374 in, 472.4 in, 570.9 in)- Overall width
7,000 mm, 8,000 mm
(275.6 in, 315 in)
Description
HIGHLIGHTS
/ Solid and modular construction
/ Versatile options available
/ Different heads can be used (including infinitely variable and 5-axis versions)
/ Automatic head change available as an option
/ Thermally stable and monitored
EUQIPMENT
/ Longitudinal and cross movement by means of rack and pinion system
/ Ram completely guarded
/ Spindle motor: 60 kW 600 Nm (S1)
/ Mechanical milling heads 3+2 or 5 axes: 38 kW, 1000 Nm, 6000 rpm
/ Milling heads with high-speed spindles 5 axes: 42 kW, 120 Nm, 24000 rpm
/ Numerical controls Heidenhain or Siemens
