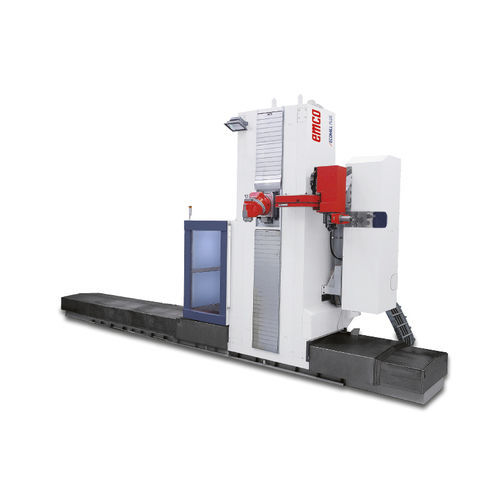

Universal CNC machining center ECOMILL PLUS5-axisHSK-100-AHSK-63-A
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Spindle mount
- HSK-100-A, HSK-63-A
- Number of tool stations
- 40 tools, 60 tools, 120 tools, 80 tools
- Applications
- for large workpieces
- Other characteristics
- milling, precision, high-speed
- X travel
Max.: 14,000 mm
(551 in)Min.: 4,000 mm
(157 in)- Y travel
1,600 mm
(63 in)- Z travel
3,000 mm
(118 in)- Rotational speed
Max.: 8,000 rpm
(50,265 rad.min-1)Min.: 15 rpm
(94 rad.min-1)- Power
60 kW
(81.58 hp)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Overall length
Max.: 19,800 mm
(779.5 in)Min.: 9,250 mm
(364.2 in)- Overall width
7,500 mm, 9,300 mm
(295.3 in, 366.1 in)- Overall height
5,300 mm
(208.7 in)
Description
HIGHLIGHTS
/ High dynamics and precision thanks to milling heads with torque motors
/ Universal Machining Centre ready for Industry 4.0
/ 15 ° undercut on the universal milling head with high-speed spindle
/ Direct drive technology on all milling heads and a wide range of applicable heads with high-speed spindle
/ Automatic tool changer installed on the column up to 120 pockets or automatic tower tool changer up to 203 pockets
/ Machine configuration according to customer’s requirement
EQUIPMENT
/ Universal Machining Centre with Ram and column in box-in-box design
/ Balancing ram asset Mecof patented system
/ Motor spindle option: 40 kW / 1200 Nm (S1)
/ Heidenhain and Siemens numerical control
