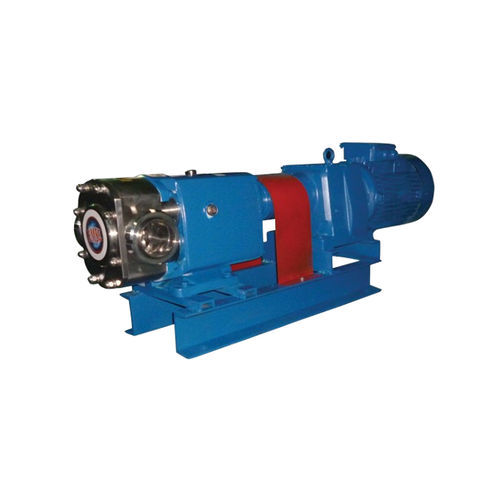

Rotary lobe pump ELP serieswaterwith electric motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary lobe
- Fluid
- water
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer, outlet
- Other characteristics
- flow
- Flow
Max.: 60 m³/h
(2,118.88 ft³/h)Min.: 2 m³/h
(70.62933 ft³/h)- Power
Max.: 45 kW
(61.18 hp)Min.: 0.42 kW
(0.57 hp)- Fluid temperature
Max.: 140 °C
(284 °F)Min.: -20 °C
(-4 °F)- Length
Max.: 633 mm
(25 in)Min.: 332 mm
(13 in)- Width
Max.: 276 mm
(10.87 in)Min.: 183 mm
(7.2 in)- Height
Max.: 397 mm
(15.63 in)Min.: 229 mm
(9.02 in)
Description
It is a type of positive displacement pump. Ideal for high viscosity and medium viscosity fluids.
This type of pumps basically consists of two lobes rotating in a body with the help of gears without touching each other. As the lobes rotate, the space between the lobes and the body is filled with fluid and transmitted towards the outlet. The pump provides a continuous flow since the distance between the lobes and between the lobes and the body is kept constant, thus providing an efficient transfer.
Areas of Use
Food Industry
Acids
Alcohol
Pharmaceutical industry
Personal care products
Melal
