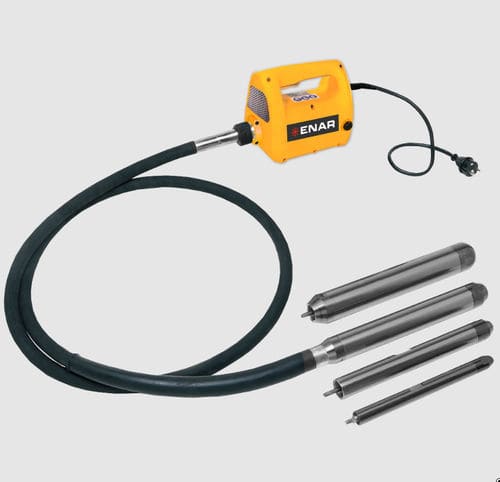

Motor-driven vibrator AVMU series

electricrotaryfor concrete parts

Product overview
The AVMU is a portable single‑phase electric concrete vibrator designed for construction sites requiring high mobility and easy handling. It is suitable for vibration tasks in foundations, walls, columns and other structural elements in renovation or small to medium‑scale construction projects. Key features support on‑site maintenance and use in confined areas.

TAX shaft
The TAX shaft is a flexible transmission for larger AX needles, with mesh reinforcement and an inner steel strip. Ends are re‑vulcanized and reinforced for durable connection to the poker.

• Mesh reinforcement and inner steel strip
• Re‑vulcanized reinforced ends

TAXE shaft
The TAXE shaft is intended for smaller poker sizes (AX25 and AX32) and offers extra protection at the junction with the needle.

AX needle (Poker AX)
The AX poker is an oversized eccentric needle with a hardened steel tip, designed for efficient concrete compaction. It features four oil‑lubricated bearings and a double seal to limit water ingress.

• Four oil‑lubricated bearings
• Double seal to prevent water ingress

Customize AVMU

• Motor AVMU: available models AVMU 230V and AVMU 115V
• Shaft options (TAX / TAXE): lengths from 0.6 m up to 6 m; transmission type TAX or TAXE
• Poker AX diameters: AX 25, AX 32, AX 40, AX 45, AX 48, AX 58

Technical characteristics — Motor AVMU
AVMU 230V | AVMU 115V
DIMENSIONS: 354 x 150 x 205 mm | 354 x 150 x 205 mm
FREQUENCY: 50‑60 Hz | 50‑60 Hz
POWER: 2,300 W | 1,800 W
REVOLUTIONS (r.p.m): 18,000 | 18,000
VOLTAGE: 230 V | 115 V
WEIGHT: 5 kg | 5 kg

Technical characteristics — Shaft TAX (overview)
TAXE 0.6 | TAX 1 | TAXE 1 | TAX 1.5 | TAXE 1.5 | TAX 2 | TAXE 2 | TAX 3 | TAXE 3 | TAX 4 | TAXE 4 | TAX 5 | TAXE 5 | TAX 6 | TAXE 6
ASSOCIATED POKER: AX 25 32 | AX 40 48 58 | AX 25 32 | AX 40 48 58 | AX 25 32 | AX 40 48 58 | AX 25 32 | AX 40 48 58 | AX 25 32 | AX 40 48 58 | AX 25 32 | AX 40 48 58 | AX 25 32 | AX 40 48 58 | AX 25 32
LENGTH: 0.6 m | 1 m | 1 m | 1.5 m | 1.5 m | 2 m | 2 m | 3 m | 3 m | 4 m | 4 m | 5 m | 5 m | 6 m | 6 m
TRANSMISSION TYPE: TAXE | TAX | TAXE | TAX | TAXE | TAX | TAXE | TAX | TAXE | TAX | TAXE | TAX | TAXE | TAX | TAXE
WEIGHT: 2.6 kg | 3 kg | 3 kg | 3.5 kg | 3.5 kg | 4 kg | 4 kg | 5 kg | 5 kg | 6 kg | 6 kg | 7 kg | 7 kg | 8 kg | 8 kg

Technical characteristics — Poker AX (overview)
AX 25 | AX 32 | AX 40 | AX 45 | AX 48 | AX 58
ASSOCIATED TRANSMISSION: TAXE‑TDXE | TAXE‑TDXE | TAX‑TDX | TBX‑TDX | TAX‑TDX | TAX‑TDX
DIAMETER: 25 mm | 32 mm | 40 mm | 45 mm | 48 mm | 58 mm
LENGTH: 285 mm | 366 mm | 335 mm | 325 mm | 335 mm | 344 mm
m3/h: 10 | 14 | 17 | 25 | 28 | 35
REVOLUTIONS (r.p.m): 14,000 | 13,750 | 13,500 | 9,000 | 12,500 | 12,000
WEIGHT: 0.8 kg | 1.7 kg | 2.2 kg | 3 kg | 3.2 kg | 4.5 kg

Applications
The AVMU is designed for concrete vibration where mobility and easy handling are required: foundations, walls, columns and other structural elements in renovation or small to medium‑scale construction. Compact design, transport strap and integrated handle switch make it suitable for confined or hard‑to‑reach areas.

Technical specifications

• Portable single‑phase electric concrete vibrator
• Motor weight: 5 kg
• Motor power: 2,300 W (230 V) / 1,800 W (115 V)
• Motor speed: 18,000 r.p.m.
• Motor dimensions: 354 x 150 x 205 mm
• Frequency: 50‑60 Hz
• Available poker diameters: 25, 32, 40, 45, 48, 58 mm
• Shaft lengths: 0.6 m, 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 6 m
• Transmission types: TAX (larger pokers) and TAXE (smaller pokers)
• Features: reinforced connection cable, high‑resistance housing, transport strap, integrated handle switch, rear air filter, easy external brush replacement
