Voltage/current converter BOXEL E-BATT

high-frequencypowerbuilt-in

Overview

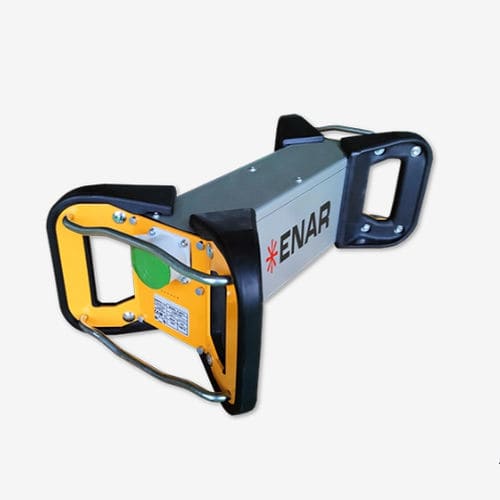

The BOXEL E-BATT is the only battery-integrated high-frequency converter designed to power 42V concrete vibrators without cables or a generator. It combines a compact aluminum housing, rubber seals and ergonomic handles to provide mobility and protection on construction sites.

Applications

• Concrete vibration on construction sites where grid power is unavailable or access is limited.
• Works on foundations, formworks, columns and vertical structures.
• Small-to-medium jobs requiring quick deployment and high mobility.

Benefits

• LIGHTWEIGHT AND COMPACT: Aluminum enclosure with shock protection for easy handling and transport on site.
• POWERFUL BATTERY: High-capacity battery (68.4 V) providing up to 120 minutes of autonomy depending on use and connected vibrator.
• OPTIMIZED PERFORMANCE: Intelligent control maintains stable 42V 200Hz output to ensure effective vibration across different needle diameters.
• LOW MAINTENANCE & ECO-FRIENDLY: Quiet, maintenance-free operation with up to 90% energy efficiency and no consumable emissions.

Optional accessories

• Backpack for transport and hands-free use.
• BOXEL E-BATT charger.

Technical specifications

• Dimensions: 540 x 290 x 200 mm
• Weight: 11 kg
• Battery voltage: 68.4 V
• Output voltage: 42V 200Hz
• Autonomy: up to 120 minutes (depending on use and connected vibrator)
