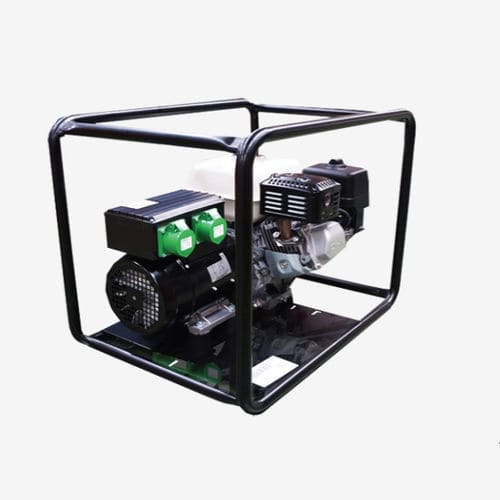

Frequency generator AF series

voltagemultiple-outputportable

Product overview
The AFG/AFGD high-frequency generator range provides a 42 V safety output and is designed to power built-in motor concrete vibrators on construction sites without mains connection. Units incorporate brushless magnetic armatures and a tubular frame with integrated shock absorbers for on-site durability and serviceability.

Key features

• 42 V safety output, frequency range 3–200 Hz.
• Brushless magnetic armatures to reduce maintenance.
• Nominal output power: 1.6 KVA.
• Two outlets per unit; range can supply multiple concrete pokers.
• Sturdy tubular frame with integrated shock absorbers for converter protection.

Applications
Designed to supply high-frequency concrete vibrators (pokers) on sites lacking grid power. Suitable for continuous heavy-duty use and for operations requiring mobility and multiple vibrator connections.

Benefits

• NO PLUGS — allows operation on sites without electrical supply, improving mobility.
• PROTECTION — frame and shock absorbers protect the converter during site handling.
• VERSATILITY — model range available to match different job requirements.
• MULTIPLE OUTPUTS — capability to feed up to 4 concrete pokers of 75 mm depending on model and configuration.

Models

• AFGH 2000 — Motor option: 5.5 CV HONDA GX160; Outlets: 2; Weight: 38 kg.
• AFDY 2000 — Motor option: YANMAR L48AE DGYC; Outlets: 2; Weight: 48 kg.

Technical specifications

• Series: AFG / AFGD.
• Output voltage: 42 V, 3–200 Hz.
• Nominal output power: 1.6 KVA.
• Outlets: 2 (per unit).
• Motor options: 5.5 CV HONDA GX160 (AFGH 2000); YANMAR L48AE DGYC (AFDY 2000).
• Weight: 38 kg (AFGH 2000); 48 kg (AFDY 2000).
• Capable of powering multiple concrete pokers; up to 4 × 75 mm depending on model and load distribution.
